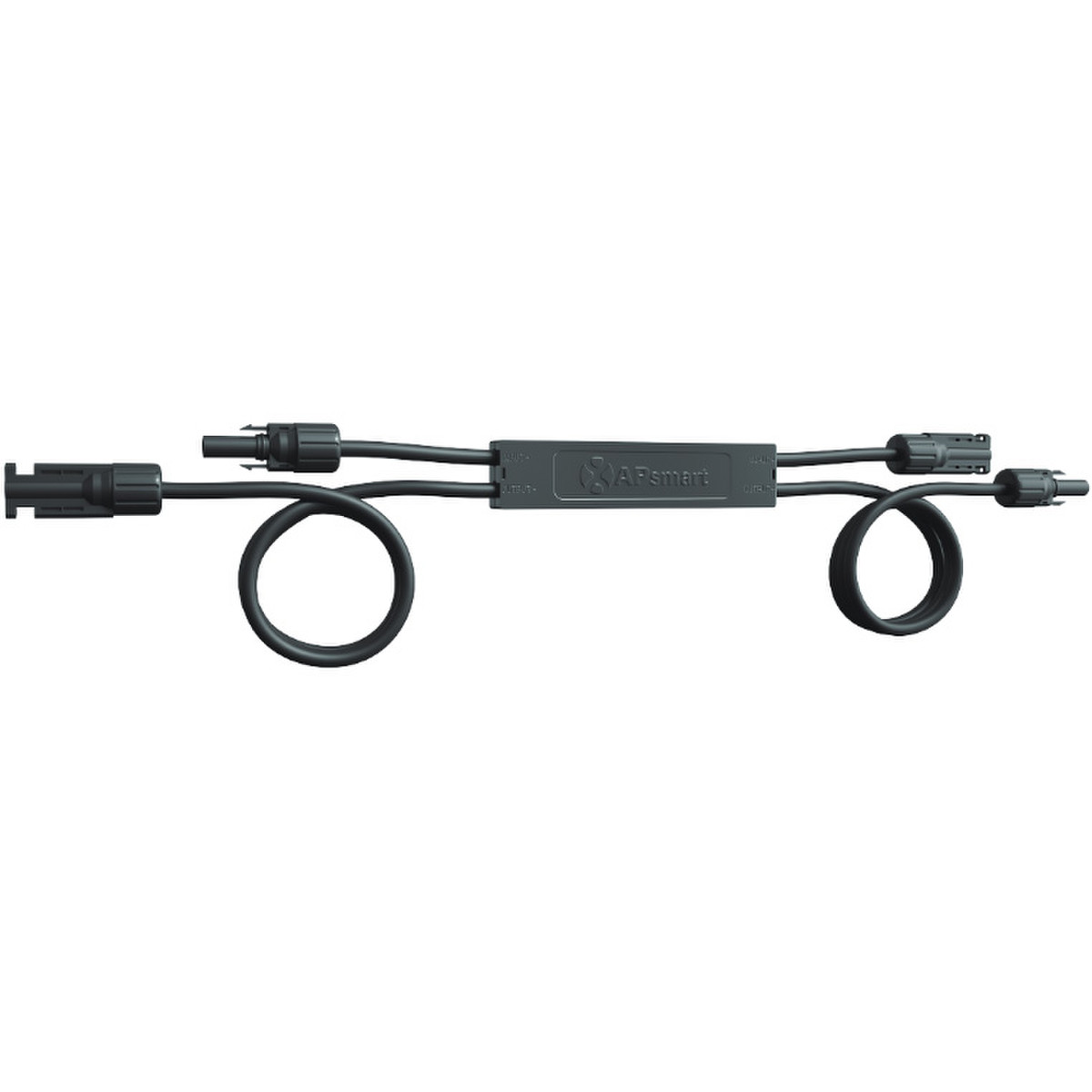

APsmart Rapid Shut Down PLC 1000V UL/TUV, 0.25m input/1.2m output cable, MC4 original

Image 1

Hover over image to zoom

  • Image 1
APsystems
$34.99
SKU: APSM-RSD-S-415002-V2
Condition: New
Weight: 1.00 LBS
Shipping: Calculated at checkout

 Product Description

APsmart Rapid Shut Down PLC 1000V UL/TUV, 0.25m input/1.2m output cable, MC4 original - APSM-RSD-S-415002-V2

Rapid Shut Down PLC 1000V UL/TUV, 0.25m input/1.2m output cable, MC4 original, Mounting brackets - IP68 Compatible with SMA, Fronius Symo Advanced, some Yaskawa/Solectria PVI and other Certified compatible SunSpec protocol inverters.

Features

The RSD-S-PLC meets SunSpec requirements, maintaining normal function by continually receiving a heartbeat signal from the APsmart Transmitter. The RSD executes rapid system shutdown when the Transmitter signal is absent. Users can manually execute rapid shutdown using Transmitter breaker switch.



General Information
Manufacturer: APsystems
Product Line:
 Inverter Accessories
Model ID:
 APSM-RSD-S-415002-V2
Certifications and Safety Ratings: ul.jpg ieee.jpg fcc.jpg csa.jpg



Specifications




INPUT DATA (DC)

  • Input Operating Voltage Range 8-80V
  • Maximum Cont. Input Current (Imax) 15A
  • Maximum Short Circuit Current（Isc） 25A

OUTPUT DATA (DC)

  • Output Operating Voltage Range 8-80V
  • Maximum System Voltage 1000V/1500V
  • Maximum Series Fuse Rating 30A

MECHANICAL DATA

  • Operating Ambient Temperature Range -40°F to +185°F (-40 °C to + 85 °C)
  • Dimensions (without cable & connectors) 5.5" x 1.3" x 0.7"(140 mm x 32 mm x 18 mm)
  • Cable Length Input 250mm/Output 1200mm
  • Cable Cross Section Size UL:12AWG
  • Connector
  • Input: Stäubli MC4 PV-KBT4&KST4 or Customized
  • Output: APsystems specified or Customized
  • Enclosure Rating NEMA Type 6P/IP68
  • Protection Temperature 100°C

FEATURES & COMPLIANCE

  • Communication PLC
  • Safety Compliance NEC 2017, 2020&2023 (690.12); UL1741; CSA C22.2 No. 330-17;
  • IEC/EN62109-1; 2PFG2305
  • EMC Compliance FCC Part15; ICES-003;IEC/EN61000-6-1/-2/-3/-4



Datasheets

Document Type

logo-adobe-pdf-2.jpgAPSM-RSD-S-415002-V2 Datasheet

logo-adobe-pdf-2.jpgAPSM-RSD-S-415002-V2 Install Manual

DataSheet

Manual

Warranty

  • Manufacturer Warranty: 25 Years
  • Performance Warranty: 25
