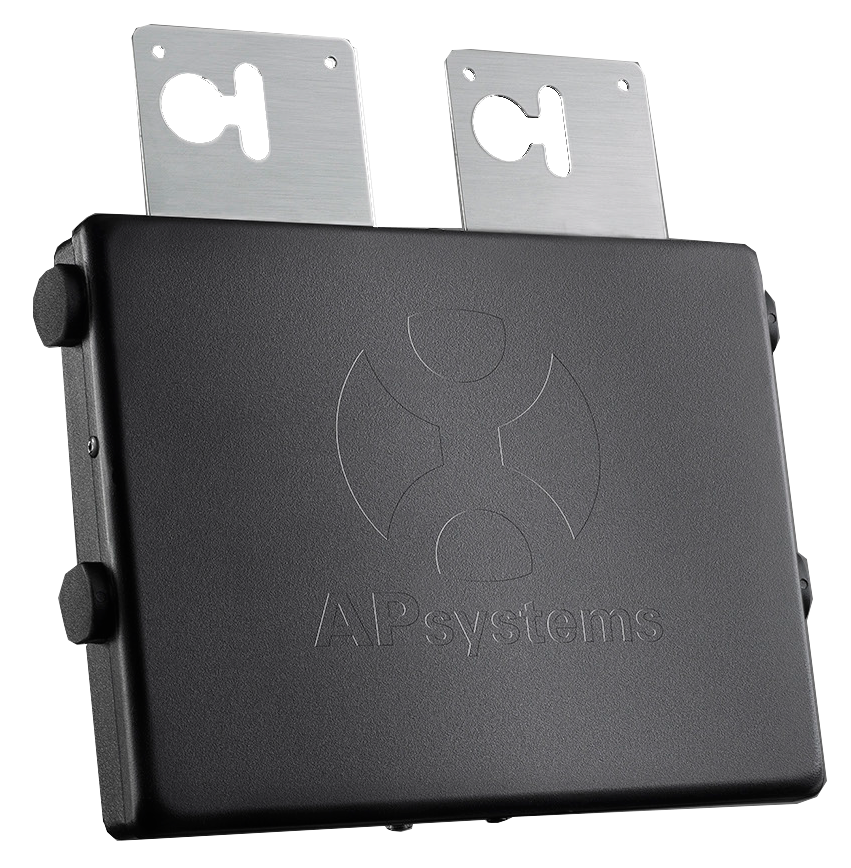

APsystems YC500i 548W Micoinverter w/Extended Warranty
Hover over image to zoom
APsystems
MSRP:
$275.00
$190.00
(You save $85.00)
SKU: STI-KU15456
Note: Out of Stock
Condition: New
Weight: 5.50 LBS
Shipping: Calculated at checkout
Product Description
| APsystems 548W mICROINVERTER - YC500i |
|
APsystems, 548W 208/240VAC Individual MPPT Micoinverter, EnergyMax, 25 Year Warranty, YC500i |
|
Features
|
| General Information | |
| Manufacturer: | APsystems |
| Product Line: |
EnergyMax |
| Model ID: |
YC500i |
| Certifications and Safety Ratings: |     |
| Mechanical Data |
|
| Technology: | Micro-Inverter |
| Dimensions: |

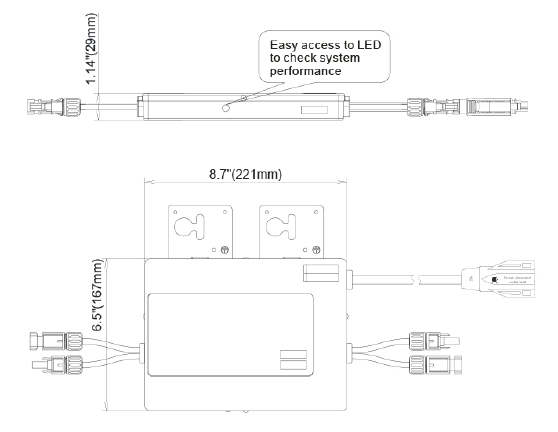

8.75 x 6.50 x 1.10 Inches (YC500i Dimensions) |
| Weight: | 5.50 lbs |
| AC Bus (Trunk Cable): | 12 AWG |
| Enclosure Rating: | NEMA 6 |
| Cooling: | Natural Convention - No Fans |
| Peak Efficiency: | 95.5% |
| CEC Weighted Efficiency: | 95% |
| Nominal MPPT Efficiency: | 99.5% |
| Night Power Consumption: | 120 mW |
| Operating Ambient Temperature Range: | -40°C to +65°C |
| Storage Temperature Range: | -40°C to +85°C |
| Communication (Inverter to ECU): | Power Line Communication |
| Emissions and Immunity (EMC) Compliance: | FCC Part 15, ANSI C63.4, ICES-003 |
| Safety Class Compliance: | UL1741 CSA C22.2 No.107.1-01 |
| Grid Connection Compliance: | IEEE 1547 |
| Monitoring: | Via EMA Software |
| Electrical Data |
|
| Input Data (DC) | |
| MPPT Voltage Range: | 22-45 Volts |
| Operation Voltage Range: | 16-52 Volts |
| Maximum Input Voltage: | 55 Volts |
| Startup Voltage: | 22 Volts |
| Maximum Input Current: | 12 Amps x 2 |
| Output Data (AC) | |
| Nominal Output Voltage: | 208 Volts and 240 Volts |
| Peak Output Power: | 548 Watts @208V | 548 Watts @240V |
| Maximum Continuous Output Power: | 500 Watts @208V | 500 Watts @240V |
| Nominal Output Current: | 2.40 Amps @208V | 2.08 Amps @240V |
| Default Output Voltage Range: | 183V-229V @208V | 211V-264V @240V |
| Peak Output Current: | 2.63 Amps @208V | 2.28 Amps @240V |
| Nominal Output Frequency: | 60Hz |
| Default Output Frequency Range: | 59.3Hz-60.5Hz |
| Maximum Units Per Branch: | 6 for 20A Breaker | 7 for 20A Breaker |
| Datasheets |
|
| Document | Type |
 APsystems YC500i Specs |
Specifications |
| APsystems YC500i Installation |
Installation Guide |
| APsystems YC500i Certifications |
Certifications |
| Warranty | Extended 25 Year Limited Warranty |
| APsystems YC500i Warranty |
Warranty |
| APsystms YC500i Extended Warranty |
Extended Warranty |
| Terms & Conditions |
|
| Shipping: | Shipping Policy |
| Returns: | Returns Policy |
| Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
APsystems - APsystems YC500i 548W Micoinverter w/Extended Warranty
Price: 190
Condition: new
Condition: new
Warranty Information
Warranty: Extended 25 Year Limited Warranty
