Astronergy CHSM6612M-360w Mono Solar Panel Pallet (Qty. 27)

Hover over image to zoom

  • CHSM6612M-360 Solar Panel Pallet
  • CHSM6612M-360
Astronergy
Discontinued
SKU: CHSM6612M-M-PAL
Note: Pallet Qty. 27. Ships LTL Freight. Cyber Monday Special Deal.
Condition: New
Weight: 1,297.62 LBS

 Product Description

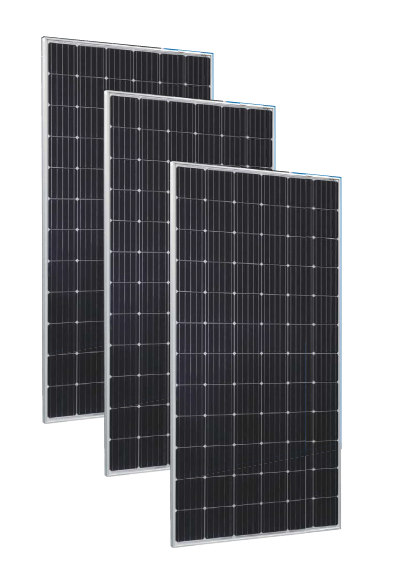

Astronergy 360w Mono Solar Panel - CHM6612M-360 - Pallet QTY. 27

Astronergy, 360W Mono Solar Panel Pallet, Qty. 27, 40mm Silver Frame with White Backsheet, 72 Cells. CHSM6612M-360

Astronergy is a manufacturers high-efficiency monocrystalline and polycrystalline solar panels. They are a trusted value-based provider of solar panels, specializing in cutting-edge research, development and production of high-efficiency solar cells. They are a global company, delivering affordable PV modules worldwide.

Features

  • Increased Value - Guaranteed 0~+5W positive tolerance ensures power output reliability. Innovative 5-busbar cells reduce the cell series resistance and internal stress, decreases the risk of micro-cracking and improves the solar panel power output.
  • High Efficiency & Reliability - PERC cell technology delivers excellent cell efficiency and output. Improved lower temperature temperature coefficient decreases power loss in the high temperature application. Effectively deals with harsh environments such as: sand, salt mist and ammonia resistance.
  • Tested Durability - Certified to hail resistance: ice ball size (d=45mm) an dice ball velocity (v=30.7m/s). Excellent PID resistance at 96 hours test, which can also be improved to meet higher standards for particularly harsh environments.



General Information
Manufacturer: Astronergy
Product Line:
AstroHalo
Model ID:
CHSM6612M-360
Certifications and Safety Ratings: ce.giful.jpg tuv.jpg csa.jpg



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:
76.93 x 38.98 x 1.57 inches
Weight: 48.06 lbs
Front Glass Thickness: 32 mm
Backsheet: White
Frame: Anodized Aluminum Alloy (Silver)
Connector: MC4 Compatible



Electrical Data

Maximum Power (Pmax): 360 Watts
Maximum Power Voltage (Vmpp): 39.14 Volts
Maximum Power Current (Impp): 9.20 Amps
Open Circuit Voltage (Voc): 47.62 Amps
Short Circuit Voltage (Isc): 9.66 Amps
Module Efficiency: 18.9%



Datasheets

Document Type
logo-adobe-pdf-2.jpgAstronergy CHSM6612M Series Specs Specifications
logo-adobe-pdf-2.jpgAstronergy Installation Guide
Installation Guide
Warranty 10 Year Limited Product Warranty
Performance Guarantee 25 Year Limited Power Output Warranty
logo-adobe-pdf-2.jpgAstronergy Warranty Warranty



Terms & Conditions

Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.

Astronergy - Astronergy CHSM6612M-360w Mono Solar Panel Pallet (Qty. 27)
Price:
Condition: new



 Warranty Information

Warranty: 10 Year Limited Product Warranty
Performance Guarantee: 25 Year Limited Power Output Warranty
