Canadian Solar BiKu CS3U-375-MB-AG 375W Bifacial Mono Solar Panel

Hover over image to zoom

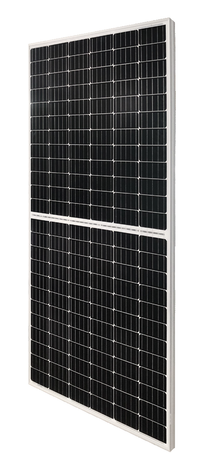

  • CS3U-375-MB-AG Front
  • CS3U-375-MB-AG Back
Canadian Solar
Discontinued
SKU: SLR-110-1227
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 56.70 LBS

 Product Description

Canadian Solar 375w Bifacial Mono Solar Panel - Cs3U-375-MB-AG

Canadian Solar, Bifacial 375W PV Module, PV Wire, T-4-MC-4 comparable, 30mm Clear Frame on White Backsheet, 144 ½ Cells, 5BB, Double 2mm Glass, Mono, 25A Fuse Max, 1000VDC, 346.9 PTC, CS3U-375-MB-AG

Canadian Solar, Inc., is committed to providing high-quality solar products, solar system solutions and services to customers around the world. No. 1 module supplier for quality and performance/price ratio in IHS Module Customer Insight Survey. As a leading PV project developer and manufacturer of solar modules with over 30 GW deployed around the world since 2001.

Features

  • Highlights - Up to 30% more power from the back side. Low NMOT and temperature coefficient. Better shading tolerance. Lower internal current, lower hot spot temperature. Minimizes micro-cracks and snail trials. Heavy snow load up to 5400 Pa, wind load up to 2400 Pa. Fire Class A and Type 3 / Type 13.



General Information
Manufacturer: Canadian Solar
Product Line:
BiKu
Model ID:
CS3U-375-MB-AG
Certifications and Safety Ratings: ce.gifcsa.jpg ul.jpg vde.jpg tuv.jpg



Mechanical Data

Technology: Bifacial Monocrystalline (Mono)
Dimensions:
79.60 x 39.10 x 1.18 inches
Weight: 56.70 lbs
Front/Back Glass: 2.0mm Heat Strengthened Glass
Frame Material: Anodized Aluminum Alloy
Junction Box: IP68, 3 Bypass Diodes
Cable: 4 mm² (IEC), 12 AWG (UL)



Electrical Data

Nominal Maximum Power (Pmax): 375 Watts
Optimum Operating Voltage (Vmp): 39.80 Volts
Optimum Operating Current (Imp): 9.43 Amps
Open Circuit Voltage (Voc): 47.60 Volts
Short Circuit Current (Isc): 9.93 Amps
Module Efficiency: 18.7%
Bifacial Efficiency Gain: 19.64% (@ 5%), 20.59% (@10%), 22.43 (@20%), 24.33 (@30%)



Datasheets

Document Type
logo-adobe-pdf-2.jpgCanadian Solar BiKu Specs Specifications
logo-adobe-pdf-2.jpgCanadian Solar Installation Installation Guide
Warranty 10 Year Limited Product Warranty
Performance Guarantee 30 Year Limited Performance Warranty
logo-adobe-pdf-2.jpgCanadian Solar Warranty Warranty
