Canadian Solar CS3N-415MS 415W Mono Solar Panel
Hover over image to zoom
Canadian Solar
Product Description
| Canadian Solar 415W Mono Solar Panel - CS3N-415MS |
|
Canadian Solar, 415W, 35mm Black Frame, White Backsheet, 132 Cell Mono-PERC, 20A Fuse, 1000VDC, CS3N-415MS With Canadian Solar’s industry leading Half Cell mono-PERC cell technology and the innovative LIC (Low Internal Current) module technology, all customers can now have high power mono modules up to 425W. The CS3N-415MS is a mono module with dimensions of 1940mm x 1048mm which is similar in size to other Canadian Solar 132 cell modules. This is an ideal module for solar installations needing performance and superior aesthetics. |
|
Features
|
| General Information | |
| Manufacturer: | Canadian Solar |
| Product Line: |
HiKu Mono PERC |
| Model ID: |
CS3N-415MS |
| Certifications and Safety Ratings: | IEC 61215 / IEC 61730 / CE; FSEC (US Florida) UL 61730 / IEC 61701 / IEC62716; UNI 9177 Reaction to Fire: Class 1 / Take-e-way |
| Mechanical Data |
|
| Technology: | Monocrystalline (Mono) |

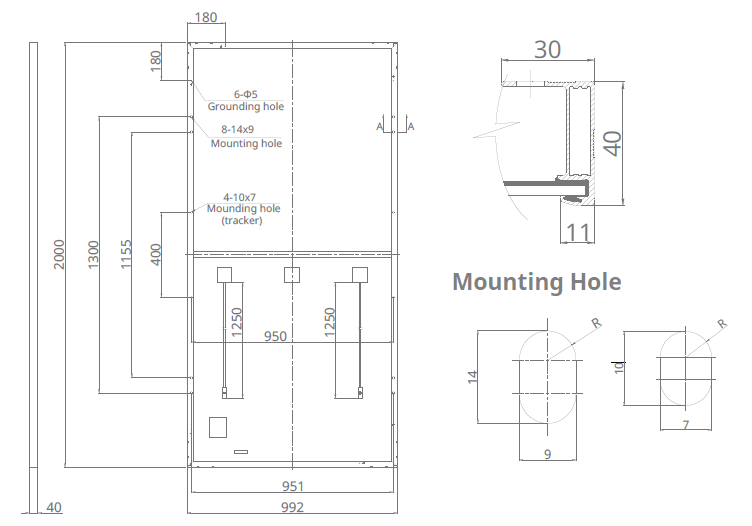

| Dimensions: |
76.4 x 41.3 x 1.38 inches (CS3N-390MS Dimensions) |
| Weight: | 49.60 lbs |
| Cell Arrangement: | 132 Mono Cells [2 x (11x6)] |
| Front Cover: | 3.2mm Tempered Glass |
| Frame: | Anodized Aluminum Alloy |
| J-Box: | IP68, 3 Diodes |
| Cable: | 4 mm² (IEC), 12 AWG (UL) |
| Cable Length: | 39.4 Inches |
| Connector: | T4 series, MC4 or MC4-EVO2 |
| Per Pallet: | 30 pieces |
| Per Container (40' HQ): | 720 Pieces |
| Module Efficiency: | 20.2% |
| Operating Temperature: | -40°C to +85°C |
| Electrical Data |
|
| Nominal Maximum Power (Pmax): | 415 Watts |
| Optimum Operating Voltage (Vmp): | 37.8 Volts |
| Optimum Operating Current (Imp): | 10.98 Amps |
| Open Circuit Voltage (Voc): | 45.1 Volts |
| Short Circuit Current (Isc): | 11.68 Amps |
| Nominal Module Operating Temperature: | 41±3°C |
| Datasheets |
|
| Document | Type |
 Canadian Solar CS3N-MS Specs |
Specifications |
| Canadian Solar Installation Guide |
Installation Guide |
| Warranty | 25 Year Limited Product Warranty |
| Performance Guarantee | 25 Year Limited Performance Warranty |
| Canadian Solar Warranty |
Warranty |
| Terms & Conditions |
|
| Shipping: | Shipping Policy |
| Returns: | Returns Policy |
| Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Canadian Solar - Canadian Solar CS3N-415MS 415W Mono Solar Panel
Condition: new
Warranty Information
Warranty: 10 Year Limited Product Warranty
Performance Guarantee: 25 Year Limited Performance Warranty
