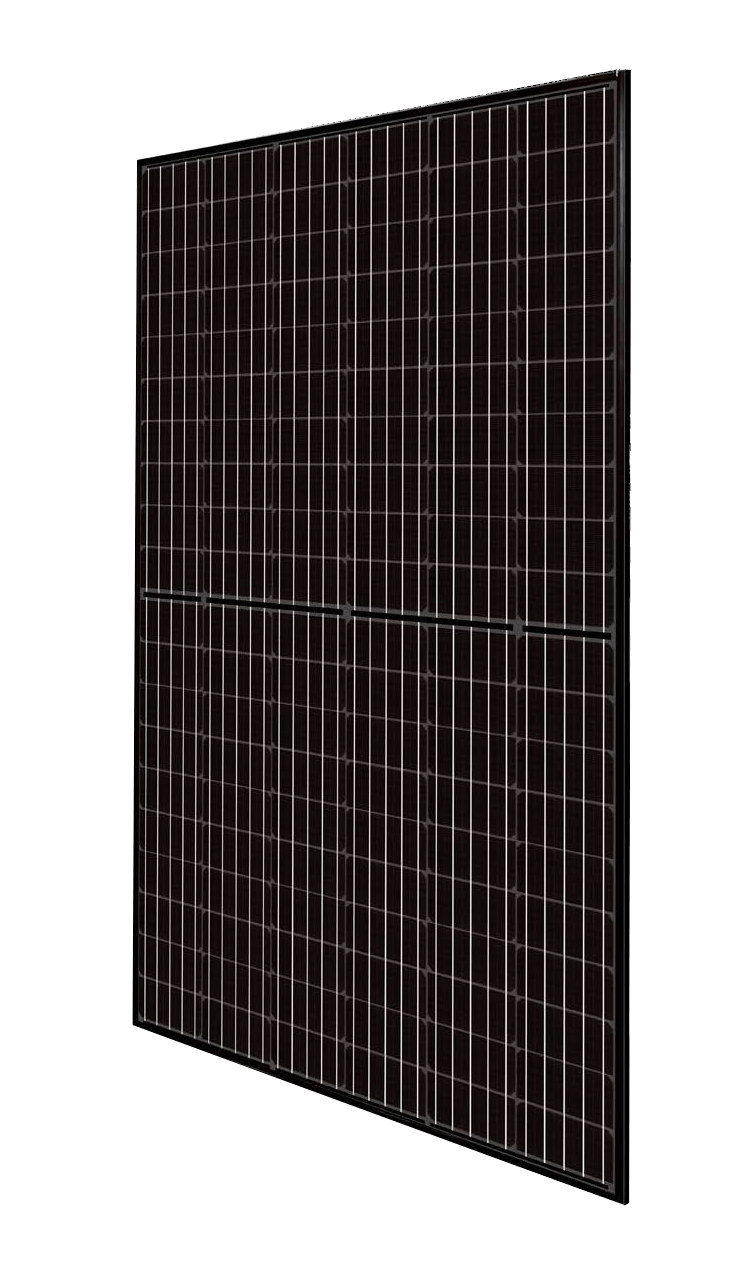

Canadian Solar KuBlack CS3K-305MS-Black 305w Mono Solar Panel
Hover over image to zoom
Canadian Solar
Discontinued
SKU: SLR-110-1206
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 40.80 LBS
Product Description
| Canadian Solar 305W Mono Solar Panel - KuPower - CS3K-305MS |
|
Canadian Solar, 305W PV Module, PV Wire, T-4-MC-4 comparable, 35mm Black Frame on Black Backsheet, BoB, 120 ½ Cells, Mono-PERC, 20A Fuse, 1000VDC, 283.8 PTC, CS3K-305MS-Black With Canadian Solar’s industry leading mono-PERC cell technology and the innovative LIC (Low Internal Current) module technology, we are now able to offer our global customers high power mono modules up to 315 W. |
|
Features
|
| General Information | |
| Manufacturer: | Canadian Solar |
| Product Line: |
KuBlack |
| Model ID: |
CS3K-305MS-Black |
| Certifications and Safety Ratings: |      |
| Mechanical Data |
|
| Technology: | Monocrystalline (Mono) |
| Dimensions: |
65.90 x 39.10 x 1.38 inches |
| Weight: | 40.80 lbs |
| Cell Arrangement: | 120 Mono Cells [2 x (10x6)] |
| Front Cover: | 3.2mm Tempered Glass |
| Frame: | Anodized Aluminum Alloy, Crossbar Enhanced |
| J-Box: | IP68, 3 Diodes |
| Cable: | 4 mm² & 12 AWG, 1160 mm (45.70 in) |
| Connector: | T4 (IEC/UL) |
| Electrical Data |
|
| Nominal Maximum Power (Pmax): | 305 Watts |
| Optimum Operating Voltage (Vmp): | 32.70 Volts |
| Optimum Operating Current (Imp): | 9.33 Amps |
| Open Circuit Voltage (Voc): | 39.50 Volts |
| Short Circuit Current (Isc): | 9.90 Amps |
| Module Efficiency: | 18.36% |
| Maximum System Voltage: | 1500 (IEC/UL) or 1000 V (IEC/UL) |
| Max Series Fuse Rating: | 30 Amps |
| Application Classification: | Class A |
| Power Tolerance: | 0~+5W |
| Datasheets |
|
| Document | Type |
 Canadian Solar CS3K-305MS Specs |
Specifications |
| Canadian Solar Installation Guide |
Installation Guide |
| Warranty | 10 Year Limited Product Warranty |
| Performance Guarantee | 25 Year Limited Performance Warranty |
| Canadian Solar Warranty |
Warranty |
| Terms & Conditions |
|
| Shipping: | Shipping Policy |
| Returns: | Returns Policy |
| Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Canadian Solar - Canadian Solar KuBlack CS3K-305MS-Black 305w Mono Solar Panel
Price:
Condition: new
Condition: new
Warranty Information
Warranty: 10 Year Limited Product Warranty
Performance Guarantee: 25 Year Limited Performance Warranty
