Canadian Solar MaxPower CS6U-330M 330w Mono Solar Panel

Hover over image to zoom

  • CS6U-330M
Canadian Solar
Discontinued
SKU: SLG-110-1104
Note: Out of Stock
Condition: New
Weight: 49.40 LBS

 Product Description

Canadian Solar 330W Mono Solar Panel - CS6U-330M

Canadian Solar, 330W PV Module, T-4 (MC4-comparable), PV Wire, 40mm Silver Frame, 72 Cell Mono, 15A Fuse, 4BB, 1000VDC, 303.8 PTC, CS6U-330M

Canadian Solar is committed to providing high quality solar products, solar system solutions and services to customers around the world. As a leading PV project developer and manufacturer of solar modules with over 15 GW deployed around the world since 2001, Canadian Solar Inc. (NASDAQ: CSIQ) is one of the most bankable solar companies worldwide.

Canadian Solar‘s new 1500 V module is a product for high voltage systems, which can increase the string length of solar systems by up to 50%, saving BOS costs.

Features

  • Highlights - Designed for high voltage systems of up to 1500VDC, saving on BoS costs. Cell efficiency of up to 20.0%. Outstanding low irradiance performance: 96.5%. High PTC rating of up to 91.7%. IP67 junction box for long-term weather endurance. Heavy snow load up to 5400 Pa, wind load up to 2400 Pa.



General Information
Manufacturer: Canadian Solar
Product Line:
MaxPower (1500V)
Model ID:
CS6U-330M
Certifications and Safety Ratings: ce.gifcsa.jpg ul.jpg vde.jpg mcs.jpg pv-cycle.jpg



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:

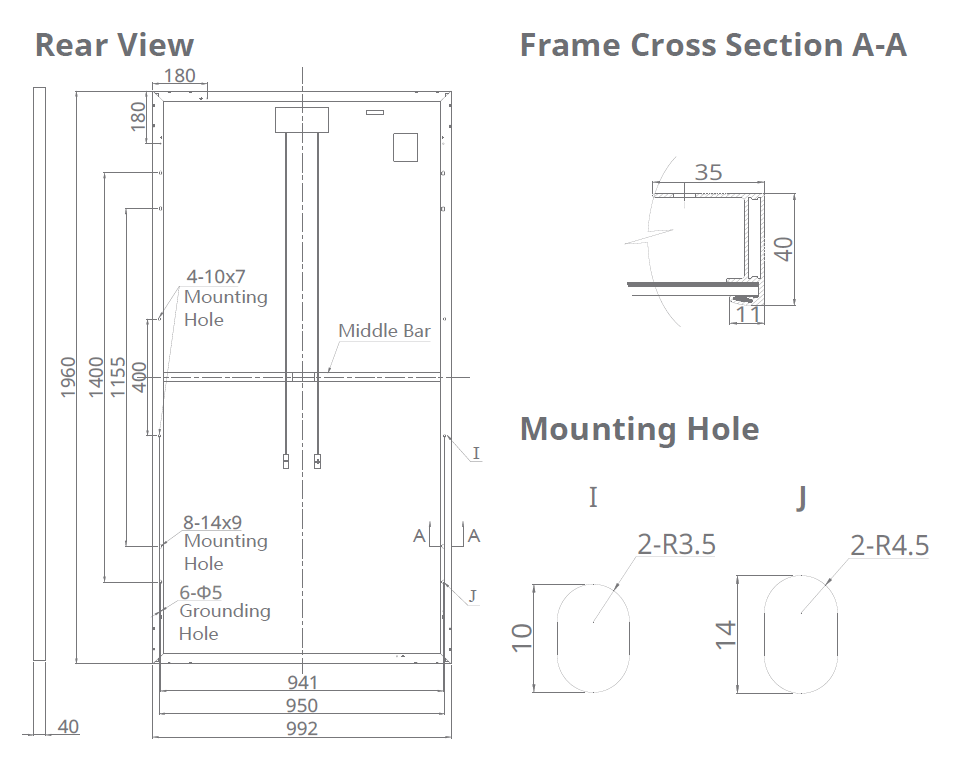

77.20 x 39.10 x 1.57 inches (CS6U-330M Dimensions)
Weight: 49.40 lbs
Cells: 72 Mono Cells (6x12)
Front Cover: 3.2mm Tempered Glass
Frame Material: Anodized Aluminum Alloy
J-Box: IP67, 3 Diodes
Cable: PV1500DC-F1 4 mm2 (IEC) & 12 AWG 2000 V (UL), 1160 mm (45.7 in)
Connector: T4-1000V or PV2 Series
Per Pallet: 26 pieces, 1400 lbs
Per Container (40' HQ): 624 Pieces
Operating Temperature: -40°C to +85°C
Module Fire Performance: Type 1 (UL 1703) or Class C (IEC 61730)
Maximum Series Fuse Rating: 15 Amps
Application Classification: Class A
Power Tolerance: 0 - +5W



Electrical Data

Nominal Maximum Power (Pmax): 330 Watts
Optimum Operating Voltage (Vmp): 37.5 Volts
Optimum Operating Current (Imp): 8.80 Amps
Open Circuit Voltage (Voc): 45.9 Volts
Short Circuit Current (Isc): 9.31 Amps
Module Efficiency: 16.97%
Maximum System Voltage: 1500V (IEC) or 1500V (UL)
Max Series Fuse Rating: 15 Amps



Datasheets

Document Type
logo-adobe-pdf-2.jpgCanadian Solar CS6U-330M Specs Specifications
logo-adobe-pdf-2.jpgCanadian Solar CS6U-330M Installation Guide Installation Guide
Warranty 10 Year Limited Product Warranty
Performance Guarantee 25 Year Limited Performance Warranty
logo-adobe-pdf-2.jpgCanadian Solar CS6U-330M Warranty Warranty
