Canadian Solar MaxPower CS6U-345M 345W Mono Solar Panel
Hover over image to zoom
Product Description
| Canadian Solar 345W Mono Solar Panel - CS6U-345M |
|
Canadian Solar, 345W PV Module, T-4 (MC4-comparable), PV Wire, 40mm Silver Frame, 72 Cell Mono, 15A Fuse, 1000VDC, 316.5 PTC, CS6U-345M Canadian Solar is committed to providing high quality solar products, solar system solutions and services to customers around the world. As a leading PV project developer and manufacturer of solar modules with over 15 GW deployed around the world since 2001, Canadian Solar Inc. (NASDAQ: CSIQ) is one of the most bankable solar companies worldwide. Canadian Solar‘s new 1500 V module is a product for high voltage systems, which can increase the string length of solar systems by up to 50%, saving BOS costs. |
|
Features
|
| General Information | |
| Manufacturer: | Canadian Solar |
| Product Line: |
MaxPower (1500V) |
| Model ID: |
CS6U-345M |
| Certifications and Safety Ratings: |       |
| Mechanical Data |
|
| Technology: | Monocrystalline (Mono) |
| Dimensions: |

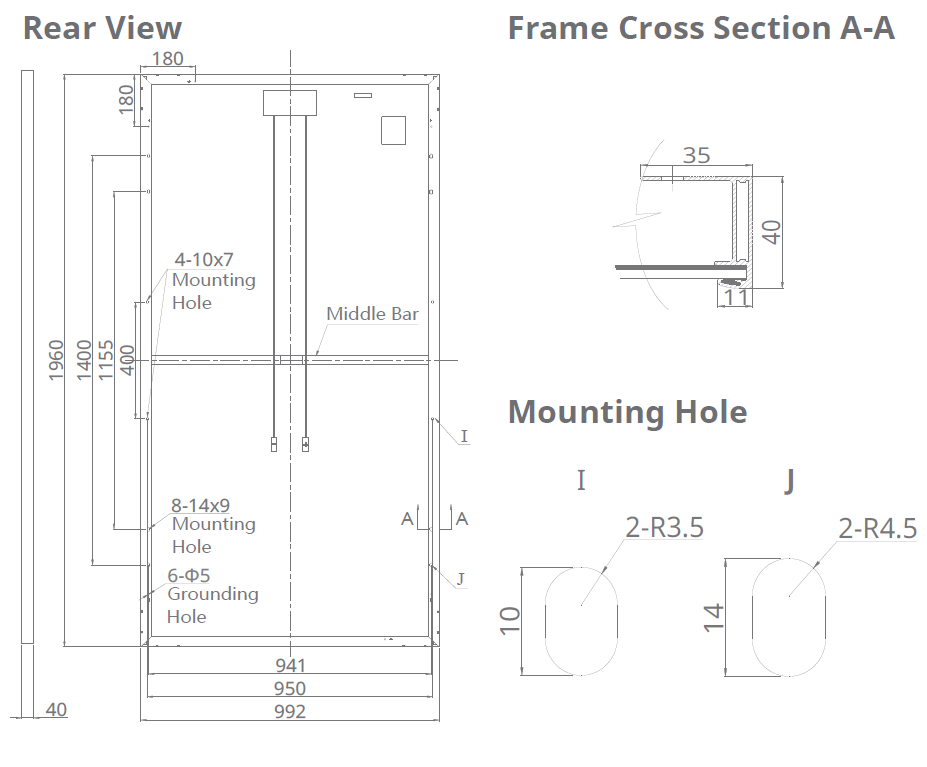

77.20 x 39.10 x 1.57 inches (CS6U-345M Dimensions) |
| Weight: | 49.40 lbs |
| Cells: | 72 Mono Cells (6x12) |
| Front Cover: | 3.2mm Tempered Glass |
| Frame Material: | Anodized Aluminum Alloy |
| J-Box: | IP67, 3 Diodes |
| Cable: | PV1500DC-F1 4 mm2 (IEC) & 12 AWG 2000 V (UL), 1160 mm (45.7 in) |
| Connector: | T4-1000V or PV2 Series |
| Per Pallet: | 26 pieces, 1400 lbs |
| Per Container (40' HQ): | 624 Pieces |
| Module Efficiency: | 17.49% |
| Operating Temperature: | -40°C to +85°C |
| Module Fire Performance: | Type 1 (UL 1703) or Class C (IEC 61730) |
| Application Classification: | Class A |
| Power Tolerance: | 0 - +5W |
| Electrical Data |
|
| Nominal Maximum Power (Pmax): | 345 Watts |
| Optimum Operating Voltage (Vmp): | 38.1 Volts |
| Optimum Operating Current (Imp): | 9.06 Amps |
| Open Circuit Voltage (Voc): | 46.4 Volts |
| Short Circuit Current (Isc): | 9.56 Amps |
| Module Efficiency: | 17.74% |
| Maximum System Voltage: | 1500V (IEC) or 1500V (UL) |
| Max Series Fuse Rating: | 15 Amps |
| Datasheets |
|
| Document | Type |
 Canadian Solar CS6U-345M Specs |
Specifications |
| Canadian Solar CS6U-345M Installation Guide |
Installation Guide |
| Warranty | 10 Year Limited Product Warranty |
| Performance Guarantee | 25 Year Limited Performance Warranty |
| Canadian Solar CS6U-345M Warranty |
Warranty |
| Terms & Conditions |
|
| Shipping: | Shipping Policy |
| Returns: | Returns Policy |
| Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Canadian Solar - Canadian Solar MaxPower CS6U-345M 345W Mono Solar Panel
Condition: new
Warranty Information
Warranty: 10 Year Limited Product Warranty
Performance Guarantee: 25 Year Limited Performance Warranty
