Canadian Solar 300w Mono Solar Panel - CS6K-300MS |
Canadian Solar, 300W PV Module, PV Wire, T4 (MC4-comparable), 35mm Black Frame on White Backsheet, BOW, 60 Cell Mono-PERC, 15A Fuse, 1000VDC, 275.6W PTC, CS6K-300MS Canadian Solar‘s new SuperPower modules with Mono-PERC cells significantly improve efficiency and reliability. The innovative technology offers superior low irradiance performance in the morning, in the evening and on cloudy days, increasing the energy output of the module and the overall yield of the solar system. CANADIAN SOLAR INC. is committed to providing high quality solar products, solar system solutions and services to customers around the world. As a leading PV project developer and manufacturer of solar modules with over 16 GW deployed around the world since 2001, Canadian Solar Inc. (NASDAQ: CSIQ) is one of the most bankable solar companies worldwide. |
Features
|
General Information | |
Manufacturer: | Canadian Solar |
Product Line: |
SuperPower |
Model ID: |
CS6K-300MS |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Monocrystalline (Mono) |
Dimensions: |

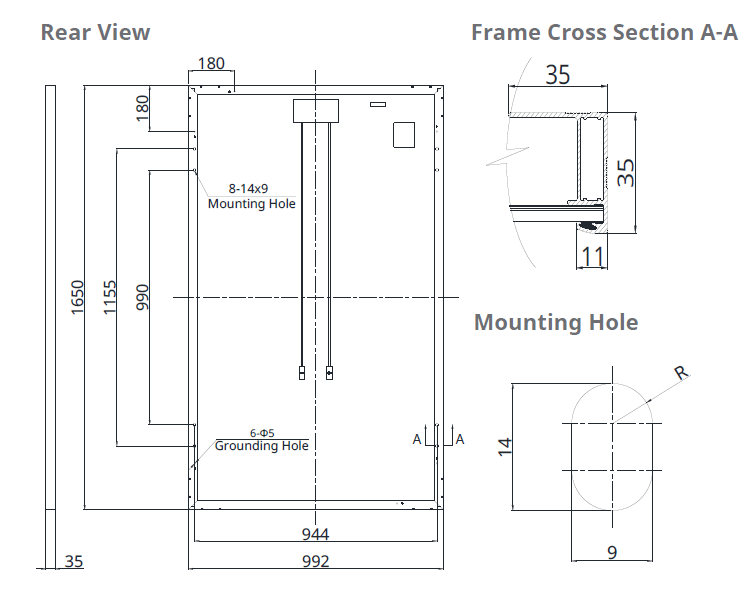

65.00 x 39.10 x 1.38 inches (CS6K-300MS Dimensions) |
Weight: | 40.10 lbs |
Cell Arrangement: | 60 (6x10) |
Front Cover: | 3.2mm Tempered Glass |
Frame Material: | Anodized Aluminum Alloy (Black) |
Junction Box: | IP67, 3 Diodes |
Cable: | (4 mm² (IEC) or 4 mm² & 12 AWG 1000 V (UL) , 1000 mm (39.4 in) |
Module Connector: | T4 Series or PV2 Series |
Per Pallet: |
26 Pieces, 1146.40 lbs |
Per Container (40' HQ): | 728 Pieces |
Operating Temperature: | -40°C to +85°C |
Electrical Data |
|
Nominal Maximum Power (Pmax): | 300 Watts |
Optimum Operating Voltage (Vmp): | 32.50 Volts |
Optimum Operating Current (Imp): | 9.24 Amps |
Open Circuit Voltage (Voc): | 39.70 Volts |
Short Circuit Current (Isc): | 9.83 Amps |
Module Efficiency: | 18.33% |
Maximum System Voltage: | 1000V (IEC) or 1000V (UL) |
Module Fire Performance: | Type1 (UL 1703) or Class C (IEC 61730) |
Max Series Fuse Rating: | 15 Amps |
Application Classification: | Class A |
Power Tolerance: | 0 / +5 W |
Datasheets |
|
Document | Type |
Canadian Solar CS6K-300MS Specs | Specifications |
Canadian Solar CS6K-300MS Installation | Installation Guide |
Warranty | 10 Year Limited Product Warranty |
Performance Guarantee | 25 Year Limited Performance Warranty |
Canadian Solar Warranty | Warranty |
