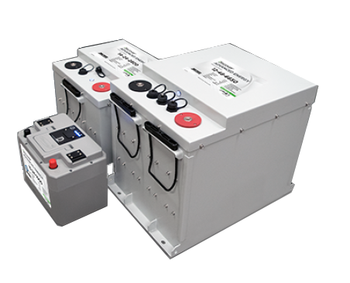

Discover 44-24-2800 2.80kWh AES Lithium-Ion Battery

44-24-2800

Hover over image to zoom

  • 44-24-2800
Discover Battery
MSRP: $4,615.55
$3,692.00 (You save $923.55)
SKU: ALG-040-12002Z
Note: 2-4 Week Lead Time. Ships LTL Freight Only.
Condition: New
Weight: 88.00 LBS
Shipping: Calculated at checkout
  • Buy 4 - 7 and get 2% off
  • Buy 8 or above and get 4% off

 Product Description

Discover 2.80kWh Lithium-Ion Battery - 44-24-2800

Discover, 2.80kWh, 25.60VDC AES Lithium Ion Battery, Xanbus, 44-24-2800

Discover Advanced Energy (AES) batteries allow for equipment design and functionality improvements and deliver productivity gains through enhanced cycling, charge time and weight reductions in stationary and mobile applications. Dramatic improvements in cycle life and charge efficiency combined
with zero maintenance requirements provide the end user with significant cost of ownership savings.

Features

  • Efficient & Fast Charging - Discover AES batteries are 15% more efficient than lead acid batteries, allowing for reduced charge times and greater utilization of renewable energy sources. Discover >95% of their capacity at high and stable voltages, increasing equipment performance and reducing motor fatigue.
  • Partial State of Charge (SOC) & Weight Efficient - Discover AES batteries will never suffer negative effects from partial SOC. Systems are 1/3 the weight of their lead acid battery equivalent.
  • Battery Management System & Renewable System Ready - Integrated Battery Management System to prevent abuse outside of current, voltage and temperature limits. Xanbus commonport provides plug and play integration with SE Conext XW+, SW, SCP, ComBox and Solar Charge Controllers.



General Information
Manufacturer: Discover Battery
Product Line:
 AES Lithium Ion
Model ID:
 44-24-2800
Certifications and Safety Ratings: ul.jpg  iec.jpg



Mechanical Data

Technology: Lithium Ion Battery
Dimensions:
 13.00 x 13.70 x 10.80 inches
Weight: 88.00 lbs
Terminal: M8
Terminal Torque: 9 Nm +/-3 | 6.64ft-lb
Case Material: Steel
IP Rating:
 IP 55
Product Certifications: IEC 6133, UL2271, UL1973, UN 38.3
Shipping Classification: UN 3480, Class 9 (Lithium Ion Batteries)
Cell Chemistry: LiFePO4
Cell Modules: 16S 26P
Cell Temperature: 0°C/45°C
Discharge Temperature: -20°C/50°C
Storage Temperature: -20°C/45°C
Self-Discharge 25°C: < 3% per Month (Battery Off)



Electrical Data

Nominal Voltage: 25.60 Volts
Charge Voltage: 27.20 Volts
Maximum Voltage: 29.20 Volts
Minimum Voltage: 22.40 Volts
Nominal Capacity (1C): 110 Ah
Nominal Energy (1C): 2816 Wh
Maximum Continuous Current: 110 Amps
Peak Current: 600 A for 3 Seconds
Constant Power - Minutes of Discharge
500 W: 337 Minutes
1000 W: 168 Minutes
2000 W: 84 Minutes
3000 W: 68 Minutes
Constant Current - Minutes of Discharge
@10A: 660 Minutes
@25A: 264 Minutes
@50A: 132 Minutes
@100A: 66 Minutes



Datasheets

Document Type
logo-adobe-pdf-2.jpgDiscover Battery 44-24-2800 Specs Specifications
logo-adobe-pdf-2.jpgDiscover Battery Installation Guide Installation Guide
logo-adobe-pdf-2.jpgDiscover Battery Safety
 Safety Sheet
Warranty Limited Warranty (See Warranty Statement)
logo-adobe-pdf-2.jpgDiscover Battery Warranty Warranty



Terms & Conditions

Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.

Discover Battery - Discover 44-24-2800 2.80kWh AES Lithium-Ion Battery
Price: 3692
Condition: new



 Warranty Information

Warranty: Limited Warranty (See Warranty Statement)
