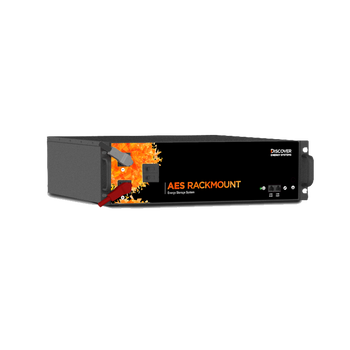

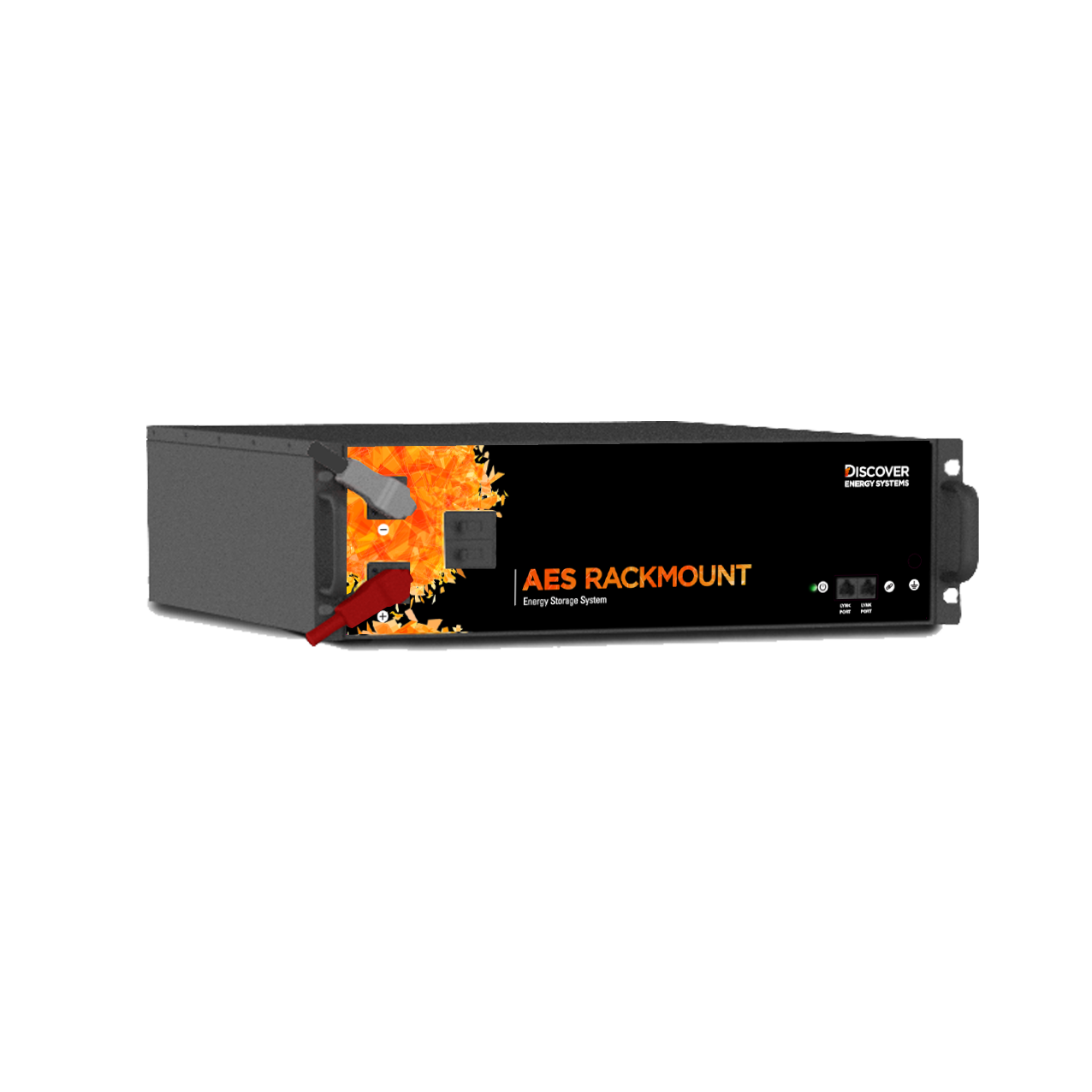

Discover ESS Battery Module, 5.0 KWH, 51.2V, 100AH, 3U 19 inch

AES RACKMOUNT 48-48-5120

AES RACKMOUNT is the rapid install energy storage system designed for Residential Off-Grid Solar and Whole-Home Backup Power. The battery features a high-current GEN-4 BMS that delivers superior peak power for demanding load support and 1C charge and discharge rates. Easy configuration, UL1973, and UL9540-BESS enable seamless permitting throughout North America. An industry-leading 10-year warranty and energy throughput performance guarantee delivers a strong ROI.

Features

LYNK PORT

• Connect battery string to LYNK Gateway
• Multi-battery BMS communication
• Remote ON/OFF capability

HIGH-CURRENT BMS

• High peak surge, continuous current
• Sets charge voltage, broadcasts SoC and temperature, balances cells

LYNK ACCESS

• Monitor and troubleshoot
• Configure communication with charger
• Export battery data logs
• Update battery firmware

ACCESSORIES

LYNK GATEWAY

• Closed-loop charger configuration
• J1939 / CAN Open / Serial CAN
• Three programmable relays

ELEMENT ESS BATTERY COMBINER

• Fully assembled. Quick connect cables
• 19-inch rack mount
• Combine up to 6 Battery Modules
• Disconnect breaker
• System ON/OFF button

BENEFITS

RUNS LONGER

• 2x Runtime of lead-acid batteries
• Up to 100% usable capacity

LASTS LONGER

• 10x the life of lead-acid battery (BCI-06)
• 10-Year warranty and energy performance guarantee

CHARGES FASTER

• 1C max charge rate, regardless of SoC
• 2x faster than C/2 rated Lithium batteries

SURGE POWER

• Up to 2.2C peak power
• Up to 1C charge/discharge

HIGH-EFFICIENCY

• Up to 50% more energy efficient than lead-acid batteries
• Up to 98% round-trip efficiency

DYNAMIC CHARGING

• Up to 40% faster recharge from 0% to 100% SoC
• Real-time charge rate optimization

PARALLEL POWER

• Up to 160 kWh (per LYNK)
• Linear scaling of charge, discharge, peak capacity

CERTIFICATION STANDARDS

• IEC 62619
• UL 1973
• UL 9540a (pending)
• UL9540 (pending)
• CE

SHIPPING CLASSIFICATION

• UN 38.3
• UN 3480, Class 9 (Lithium batteries)

MECHANICAL SPECIFICATIONS

NOTE 1: Dimensions have a ±2 mm (0.08 in) tolerance. Weights may vary.
NOTE 2: Refer to terminal guide on website for torque values.

ELECTRICAL SPECIFICATIONS

Electrical Specifications at 25°C.
Do not exceed maximum voltage at the battery terminals.
CAUTION: Extra considerations must be given to depths of discharge, operating voltages and currents when designing systems for use at maximum operating temperatures.

PERFORMANCE SPECIFICATIONS

Charging Profile

Voltage Regulated IU Charging Curve Parameters
