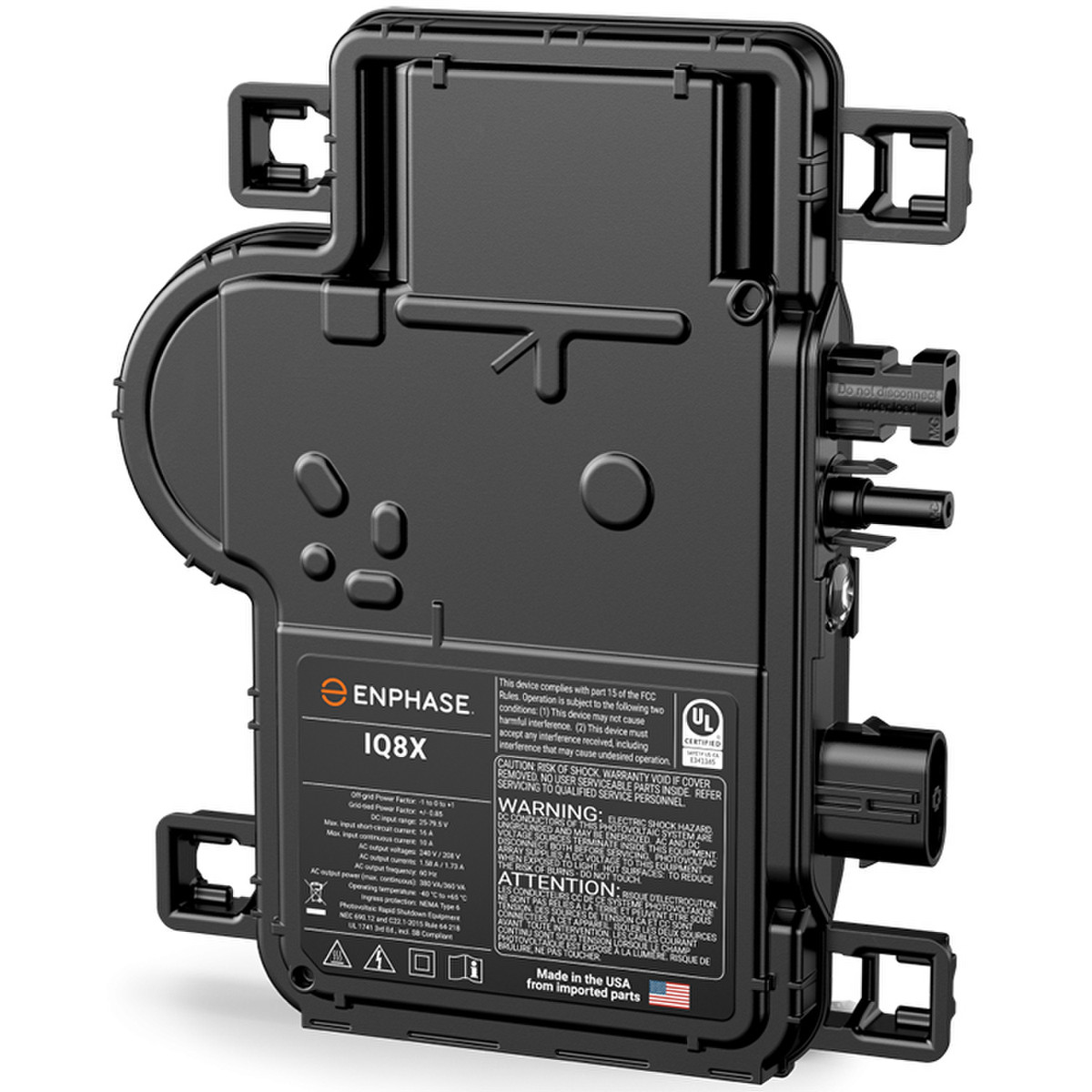

Enphase IQ8X Microinverter, compatible with 72-cell PV modules, 240V, 380VA peak power, MC4 bulkhead.

Enphase IQ8X Microinverter, compatible with 72-cell PV modules, 240V, 380VA peak power, MC4 bulkhead.

This product is supplied with MC4 connectors

Our newest IQ8 Series Microinverters are the industry’s first microgrid-forming*, software-defined microinverters with split-phase power conversion capability to convert DC power to AC power efficiently. The brain of the semiconductor-based microinverter is our proprietary application specific integrated circuit (ASIC), which enables the microinverter to operate in grid-tied or off-grid mode. This chip is built using advanced 55-nm technology with high-speed digital logic and superfast response times to changing loads and grid events, alleviating constraints on battery sizing for home energy systems.
IQ8X Microinverter is the latest addition to this family, designed to support PV modules with high input DC voltage and cell counts, such as 80-half-cut cells, 88-half-cut cells and 96-cells.

Features

Easy to install
• Lightweight and compact with plugand-play connectors
• Power line communication (PLC) between components
• Faster installation with simple two-wire cabling

High productivity and reliability
• Produces power even when the grid is down*
• More than one million cumulative hours of testing
• Class II double-insulated enclosure
• Optimized for the latest high-powered PV modules

Microgrid-forming
• Complies with the latest advanced grid support
• Remote automatic updates for the latest grid requirements
• Configurable to support a wide range of grid profiles
• Meets CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB)
