Q Cells 290w Mono Solar Panel - Q.Peak BLK-G4.1 295 |
QCells, 295W PV Module, MC4/MC-4 Compatible, PV Wire, 32mm Black Frame/Black Back Sheet, BOB, 60 Cell Mono, 20A Fuse, 1000VDC, 265.1 PTC, Q.Peak BLK-G4.1 295 With its top performance and completely black design the new Q.PEAK BLK-G4.1 is the ideal solution for all residential rooftop applications thanks to its innovative cell technology Q.ANTUM. The world-record cell design was developed to achieve the best performance under real conditions – even with low radiation intensity and on clear, hot summer days. |
Features
|
General Information | |
Manufacturer: | Hanwha Q Cells |
Product Line: |
Q.Peak |
Model ID: |
Q.Peak BLK-G4.1 295 |
Manufactured In: | Germany |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Monocrystalline (Mono) |

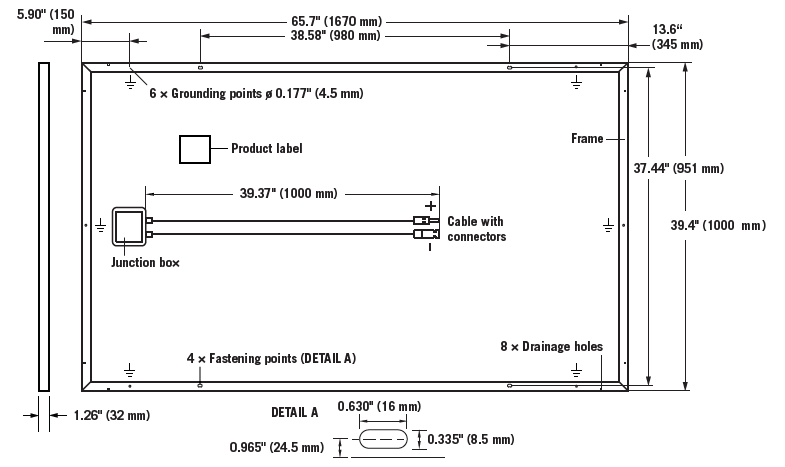

Dimensions: |
65.70 x 39.40 x 1.26 inches (Q.Peak BLK-G4.1 295 Dimensions) |
Weight: | 41.45 lbs |
Front Cover: | 0.13 in (3.2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology |
Back Cover: | Composite Film |
Frame: | Black Anodized Aluminum |
Cell: | 6 X 10 Monocrystalline Q.ANTUM Solar Cells |
Junction Box: | 2.60-3.03 in x 4.37-3.54 in x 0.59-0.75 in (66-77 mm x 111-90 mm x 15-19 mm), Protection Class IP67, with Bypass Diodes |
Cables: |
4 mm² Solar Cable; (±) ≥ 39.37 in (1000 mm), (-) ≥ 39.37 in (1000 mm) |
Connector: | Multi-Contact MC4 or MC4 Intermateable, IP68 |
Electrical Data |
|
Power at MPP²: | 295 Watts |
Short Circuit Current (Isc): | 9.63 Amps |
Open Circuit Voltage (Voc): | 39.19 Volts |
Current at MPP (Impp): | 9.07 Amps |
Voltage at MPP (Vmpp): | 31.96 Volts |
Efficiency Nominal Power (╖): | ≥ 17.70% |
Operating Temperature: | -40°C + 85°C |
Maximum System Voltage: | 1000V (IEC) / 1000V (UL) |
Datasheets |
|
Document | Type |
QCells Q.Peak BLK-G4.1 295 Specifications | Specifications |
QCells Q.Peak BLK-G4.1 295 Manual |
Manual |
Warranty | 12 Year Product Warranty |
Performance Guarantee | 25 Year Linear Performance Warranty |
QCells Warranty | Warranty |
Terms & Conditions |
|
Shipping: | Shipping Policy |
Returns: | Returns Policy |
Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Warranty: 12 Year Product Warranty
Performance Guarantee: 25 Year Linear Performance Warranty
