Hanwha Q Cells Q.PEAK DUO-L-G5.2-395 395w Mono Solar Panel

Hover over image to zoom

  • Q.PEAK DUO L-G5.2 395
  • Q.PEAK DUO L-G5.2 395 Back
Hanwha Q Cells
Discontinued
SKU: ALG-011-06557
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 51.80 LBS

 Product Description

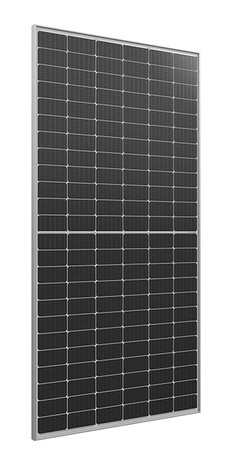

Q Cells 395w Mono Solar Panel - Q.PEAK DUO L-G5.2 395

QCells, 395W PV Module, MC-4, PV Wire, Clear Frame, White backsheet, 144 Mono Half-Cut Cells (72 Cell Equivalent), Q.PEAK DUO L-G5.2 395

The new high-performance module Q.PEAK DUO L-G5.2 is the ideal solution for commercial and utility applications thanks to a combination of its innovative cell technology Q.ANTUM and cutting edge cell interconnection. This 1500 V IEC/UL solar module with its 6 busbar cell design ensures superior yields with up to 395 Wp while having a very low LCOE.

Features

  • Technology - Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.9 %. Optimal yields, whatever the weather with excellent low-light and temperature behavior.
  • Performance - Long-term yield security with Anti LID Technology, Anti PID Technology1, Hot-Spot Protect and Traceable Quality Tra.Q. High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (2400 Pa).



General Information
Manufacturer: Hanwha Q Cells
Product Line:
Q.Peak DUO L-G5.2
Model ID:
Q.PEAK DUO L-G5.2 395
Manufactured In: Germany
Certifications and Safety Ratings: ce.gifcsa.jpg vde.jpg



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:
79.3 x 39.4 x 1.38 inches
Weight: 51.8 lbs
Front Cover: 0.13 in (3.2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology
Back Cover: Composite Film
Frame: Anodized Aluminum
Cell: 144 Monocrystalline Q.ANTUM Solar Half Cells



Electrical Data

Power at MPP²: 395 Watts
Short Circuit Current (Isc): 10.19 Amps
Open Circuit Voltage (Voc): 48.74 Volts
Current at MPP (Impp): 9.7 Amps
Voltage at MPP (Vmpp): 40.71 Volts
Efficiency Nominal Power (╖): ≥ 19.60%



Datasheets

Document Type
logo-adobe-pdf-2.jpgQCells Q.Peak DUO L-G5.2 395 Specifications Specifications
logo-adobe-pdf-2.jpgQCells Manual
Manual
Warranty 12 Year Product Warranty
Performance Guarantee 25 Year Linear Performance Warranty
logo-adobe-pdf-2.jpgQCells Warranty Warranty



Terms & Conditions

Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.

Hanwha Q Cells - Hanwha Q Cells Q.PEAK DUO-L-G5.2-395 395w Mono Solar Panel
Price:
Condition: new



 Warranty Information

Warranty: 12 Year Product Warranty
Performance Guarantee: 25 Year Linear Performance Warranty
