Hyundai 295w Mono Solar Panel - HiS-S295RG |
Hyundai, 295w 20A 60 Cell Mono Solar Panel, Black Frame, HiS-S295RG Established in 1972, Hyundai Heavy Industries (HHI) is one of the most trusted names in the heavy industries sector with 48,000 employees and more than 40 Billion USD in annual sales (2015). As a global leader and innovator, Hyundai Heavy Industries is committed to building a future growth engine by developing and investing heavily in the field of renewable energy.Started as a core business division of HHI, Hyundai Solar (Hyundai Heavy Industries Green Energy) now stands as a n independent company and an affiliate of HHI as from December 2016. It is the largest and the longest standing PV cell and module manufacturer in South Korea with 800 MW of module production capacity. We have strong pride in providing high-quality solar PV products to more than 3,000 customers worldwide. |
Features
|
General Information | |
Manufacturer: | Hyundai Heavy Industries |
Product Line: |
RG Series |
Model ID: |
HiS-S295RG |
Certifications and Safety Ratings: |
Mechanical Data |
|
Technology: | Monocrystalline (Mono) |

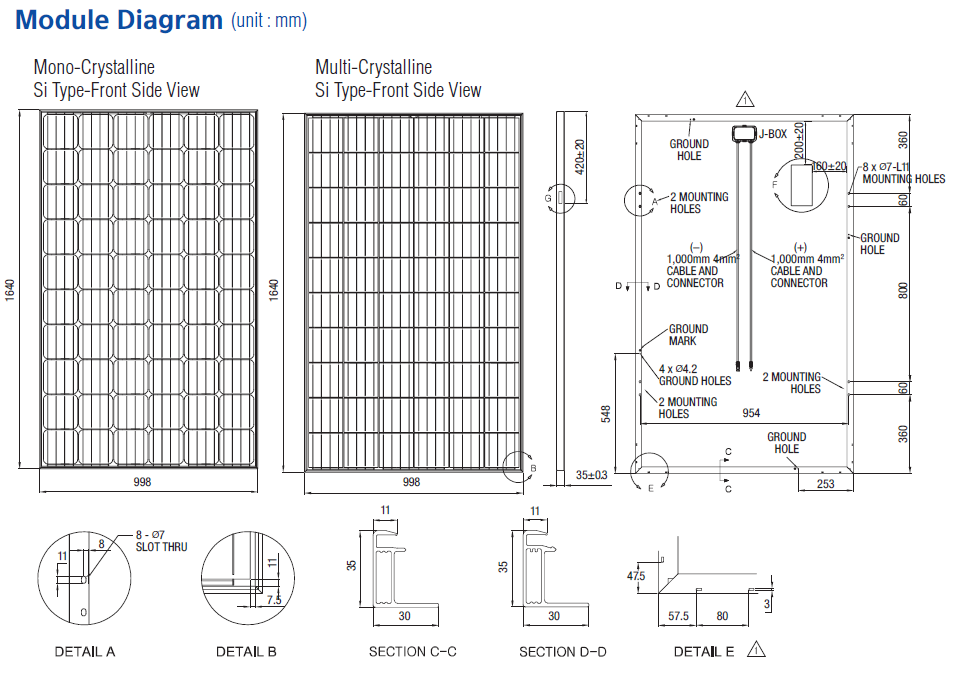

Dimensions: |
64.57 x 39.29 x 1.68 inches (HiS-S295RG Dimensions) |
Weight: | 41.20 lbs |
Solar Cells: | 60 Cells in Series |
Output Cables: | 4 mm² (12 AWG) Cables with Polarized Weatherproof Connectors, IEC Certified (UL Listed), Length 39.4 Inches |
Junction Box: | IP68, Weatherproof, IEC Certified (UL Listed) |
Bypass Diodes: | 3 Bypass Diodes to Prevent Power Decrease by Partial Shade |
Construction: | Front: Anti-Reflection Coated Glass, 3.2 mm (0.126"); Encapsulant: EVA; Backsheet: Weatherproof film |
Frame: | Clear Anodized Aluminum Alloy Type 6063 |
Electrical Data |
|
Nominal Output (Pmpp): | 295 Watts |
Open Circuit Voltage (Voc): | 39.00 Volts |
Short Circuit Current (Isc): | 9.80 Amps |
Voltage at Pmax (Vmpp): | 32.10 Volts |
Current at Pmax (Imp): | 9.20 Amps |
Module Efficiency: | 18.00% |
Maximum Reverse Current: | 15 Amps |
Datasheets |
|
Document | Type |
Hyundai HiS-S295RG Specs | Specifications |
Hyundai Installation Guide | Installation Guide |
Warranty | 10 Year Product Warranty |
Performance Warranty | 25 Year Performance Warranty |
Hyundai Warranty | Warranty |
Terms & Conditions |
|
Shipping: | Shipping Policy |
Returns: | Returns Policy |
Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Warranty: 10 Year Product Warranty
Performance Warranty: 25 Year Performance Warranty
