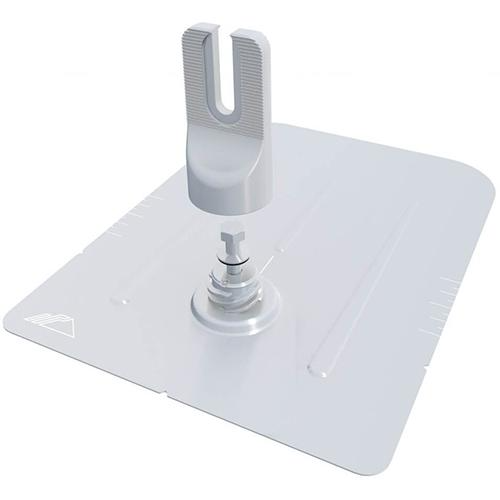

IronRidge FlashFoot2, Mill, IR-FF2-02-M2, now with narrow 8" flashing to minimize nail interference

IronRidge FlashFoot2 raises the bar in solar roof protection. The unique water seal design is both elevated and encapsulated, delivering redundant layers of protection against water intrusion. Available in mill and black finishes.

In addition, the twist-on Cap perfectly aligns the rail attachment with the lag bolt to maximize mechanical strength. The flashing has a 9" x 12" profile, which minimizes interference with roofing nails. Comes with flashing, lag bolt, and Cap. Passed the TAS-100 Wind-Driven Rain Test.

Features

THREE-TIER WATER SEALING

• An elevated platform diverts water away, while a stack of rugged components raises the seal an entire inch. The seal is then fully-encased by the Cap.

TWIST-ON CAP

• The unique Cap design encapsulates the lag bolt and locks into place with a simple twist. Change the orientation of the slotted cap by rotating it 90 degrees before twisting on.

SINGLE-SOCKET SIZE

• A custom-design lag bolt allows you to install FlashFoot2 with the same 7/16" socket size used on other Flush Mount System components.

CONCENTRIC LOADING

• FlashFoot2 is the only product to align the rail and lag bolt. This concentric loading design results in a stronger attachment for the system.
