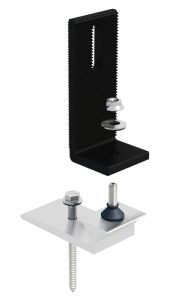

IronRidge KO Tile Replacement Base (Incl. 1 L-Foot (Black), 1 Lag and Hardware) (Priced as each)

IronRidge Knockout Tile is a tile replacement mount that installs fast and works on flat, S, or W tiles, as well as, on roofs with battens or roofs that are battenless. Its simple base allows you to put it anywhere within the flashing pad on the rafter, and just punch a small hole in the flashing where it is needed—with no cutting or grinding. Open-Slotted L-Foot
included. Knockout Tile is fully tested to our rigorous standards, certified as a system with XR Rail® and covered by our 25-year warranty. The Knockout Tile Deck Flashing can add an extra layer of water protection, when necessary.

Solar installs on tile roofs can be messy and complicated. These jobs often require tile grinding to ensure fit, a struggle to align mounting components, and extensive searches to find the replacements for broken tiles.

Knockout (KO) Tile is a replacement mount that rapidly and reliably integrates into the existing roof system. With the strike of a hammer, a solid stack of high-performance, form-fitting components fully encases the waterproof seal. The kit now includes an open-slotted L-Foot.

Note: the second photo shows the flashing with the Tile Replacement Base installed. That part does not come with the flashing.

IronRidge KOF-F01-T1 Knockout Tile Flashing is a tile replacement mount that installs fast and works on flat tile roofs with battens or roofs that are battenless. Covered by a 25-year warranty. The flashing is used with the Tile Replacement Base.

(Incl. 1 L-Foot (Black), 1 Lag and Hardware)

Features

Form-Fit Seal

• Keep water down and out with unique seal technology by joining the flashing, gasket, and L-foot with the single strike of a hammer.

Universal Pedestal

• Strong and compact Pedestal Base can be placed anywhere along the rafter in any orientation.

Concentric Loading

• Minimal offset uses a single lag. That means 40% higher loading capacity and half the roof penetrations.

Desk Flashing

• An optional Knockout Tile Deck Flashing is available to add an extra layer of waterproofing, when necessary.
