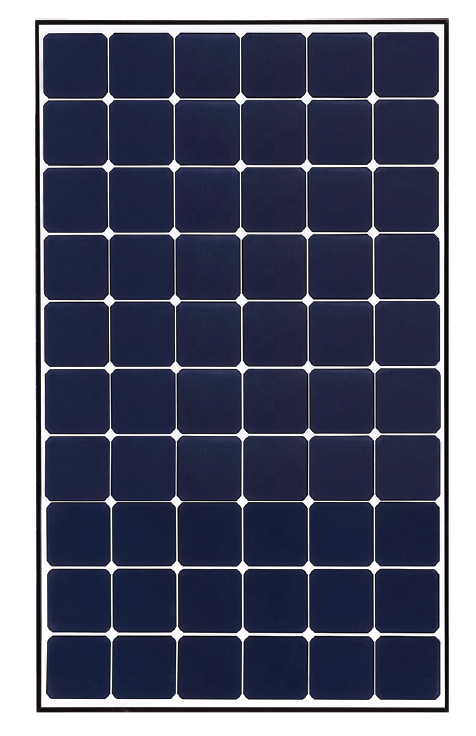

LG Solar 375w Mono Solar Panel - NeON R - LG375Q1C-V5 |
LG, NeON2, 375w PV Module, 60 Cell Black Frame, White Backsheet, Darker HTAR (.AU2) Glass, LG375Q1C-V5.AU2 The LG NeON R is a powerful solar module that provides world-class performance. A new cell structure that eliminates electrodes on the front maximizes the utilization of light and enhances reliability. The LG NeON® R is a result of LG’s efforts to increase customer value beyond basic efficiency. The NeON R features enhanced durability and performance under real-world conditions, an enhanced warranty and an aesthetic design suitable for roofs. |
Features
|
General Information | |
Manufacturer: | LG Solar |
Product Line: |
NeON 2 Series |
Model ID: |
LG375Q1C-V5 |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Monocrystalline (Mono) |
Dimensions: |
66.93 x 40.00 x 1.57 inches |
Weight: | 38.58 lbs |
Cells: | 6 x 10 |
Cell Type: | Monocrystalline / N-Type |
Connector Type: | MC4 / MC |
Junction Box: | IP68 with 3 Bypass Diodes |
Cables: | 1000 mm x 2 Ea |
Glass: |
Darker HTAR (.AU2) Tempered Glass with AR Coating |
Frame: | Anodized Aluminum |
Electrical Data |
|
Nominal Maximum Power (Pmax): | 375 Watts |
MPP Voltage (Vmpp): | 36.70 Volts |
MPP Current (Impp): | 9.95 Amps |
Open Circuit Voltage (Voc): | 42.80 Volts |
Short Circuit Voltage (Isc): | 10.80 |
Module Efficiency: | 21.10% |
Datasheets |
|
Document | Type |
LG Electronics LG375Q1C-V5 Specs | Specifications |
LG Electronics Installation Guide | Installation Guide |
Warranty | 25 Year Product Warranty |
Performance Guarantee | 25 Year Linear Performance Warranty |
LG Electronics Warranty | Warranty |
