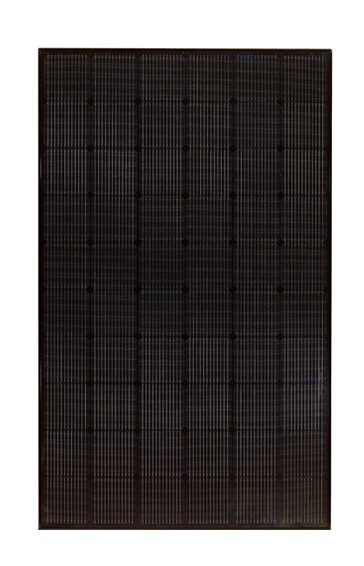

LG Solar 315w Mono Solar Panel - NeON R - LG315N1K-V5 |
LG, NeON2 Black, PV Modules, Mono, Black Frame, MC4 Connectors, USA, LG315N1K-V5 LG’s new module, LG NeON2, ado pts Cello technology. Cello technology replaces 3 busbars with 12 thin wires to enhance power output and reliability. LG NeON2 demonstrates LG’s efforts to increase customer’s values beyond efficiency. It features enhanced warranty, durability, performance under real environment, and aesthetic design suitable for roofs. |
Features
|
General Information | |
Manufacturer: | LG Solar |
Product Line: |
NeON2 Black |
Model ID: |
LG315N1K-V5 |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Monocrystalline (Mono) |
Dimensions: |
66.38 x 40.00 x 1.57 inches |
Weight: | 39.68 lbs |
Cells: | 6 x 10 |
Cell Type: | Monocrystalline / N-Type |
Front Load: |
6000 Pa / 125 psf |
Rear Load: | 5400 Pa / 113 psf |
Connector Type: | MC4 |
Junction Box: | IP68 with 3 Bypass Diodes |
Cables: | 1000 mm x 2 Ea |
Glass: |
High Transmission Tempered Glass |
Frame: | Anodized Aluminum |
Module Fire Performance (USA): | Type 1 |
Operating Temperature: | -40°C to +90°C |
Electrical Data |
|
Nominal Maximum Power (Pmax): | 315 Watts |
MPP Voltage (Vmpp): | 32.9 Volts |
MPP Current (Impp): | 9.58 Amps |
Open Circuit Voltage (Voc): | 40.7 Volts |
Short Circuit Voltage (Isc): | 10.15 Amps |
Module Efficiency: | 18.40% |
Datasheets |
|
Document | Type |
LG Electronics LG315N1K-V5 Specs | Specifications |
LG Electronics Installation Guide | Installation Guide |
Warranty | 25 Year Product Warranty |
Performance Guarantee | 25 Year Linear Performance Warranty |
LG Electronics Warranty | Warranty |
