LG Solar 330w Mono Solar Panel - NeON 2 - LG330N1C-A5 |
LG, NeON2, 330w PV Module, Black Frame, Made in Korea, MC4-Type, LG330N1C-A5 LG's new module, NeON 2, adopts Cello technology. Cello technology replaces 3 busbars with 12 thin wires to enhance power output and reliability. NeON 2 demonstrates LG's efforts to increase customer's values beyond efficiency. It features enhanced warranty, durability, performance under real environment, and aesthetic design suitable for roofs. The rear of the cell used in LG NeON 2 will contribue to generation, just like the front; the light beam reflected from the rear of the module is reabsorbed to generate a great amount of additional power. |
Features
|
General Information | |
Manufacturer: | LG Solar |
Product Line: |
NeON 2 Series |
Model ID: |
LG330N1C-A5 |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Monocrystalline (Mono) |
Dimensions: |

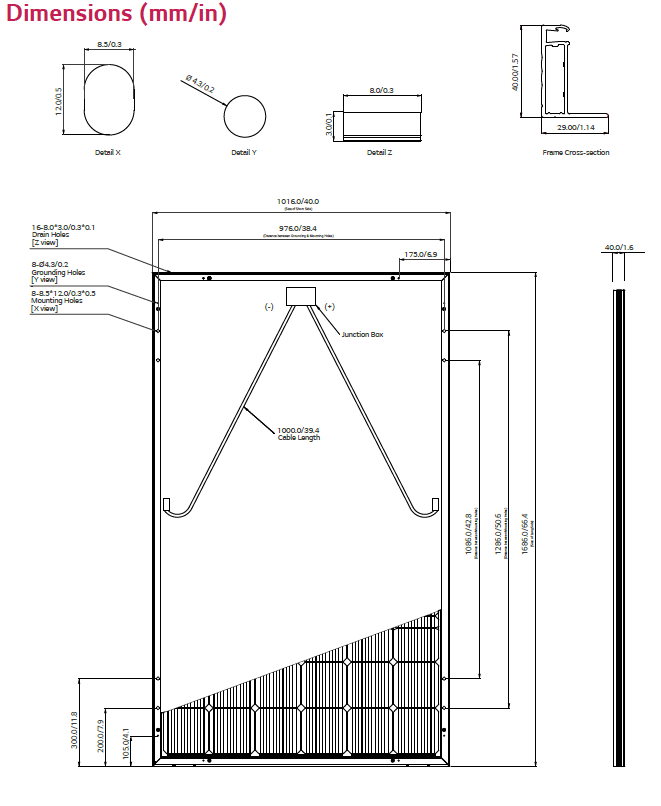

66.38 x 40.00 x 1.57 inches (LG330N1C-A5 Dimensions) |
Weight: | 39.68 lbs |
Cells: | 6 x 10 |
Cell Type: | Monocrystalline / N-Type |
Number of Busbars: | 12 (Multi Wire Busbar) |
Front Load: |
6000 Pa |
Rear Load: | 5400 Pa |
Connector Type: | MC4 |
Junction Box: | IP68 with 3 Bypass Diodes |
Cables: | 1000 mm x 2 Ea |
Glass: |
High Transmission Tempered Glass |
Frame: | Anodized Aluminum |
Certifications: | IEC 61215, IEC 61730-1/-2, UL 1703, IEC 61701 (Salt Mist Corrosion Test), IEC 62716 (Ammonia Corrosion Test), ISO 9001 |
Module Fire Performance (USA): | Type 1 |
Operating Temperature: | -40°C to +90°C |
Electrical Data |
|
Nominal Maximum Power (Pmax): | 330 Watts |
MPP Voltage (Vmpp): | 33.70 Volts |
MPP Current (Impp): | 9.80 Amps |
Open Circuit Voltage (Voc): | 40.90 Volts |
Short Circuit Voltage (Isc): | 10.45 |
Module Efficiency: | 19.30% |
Maximum System Voltage: | 1000V |
Maximum Series Fuse Rating: | 20 Amps |
Power Tolerance: | 0 - +3% |
Datasheets |
|
Document | Type |
LG Electronics LG330N1C-A5 Specs | Specifications |
LG Electronics Installation Guide | Installation Guide |
Warranty | 25 Year Product Warranty |
Performance Guarantee | 25 Year Linear Performance Warranty |
LG Electronics Warranty | Warranty |
