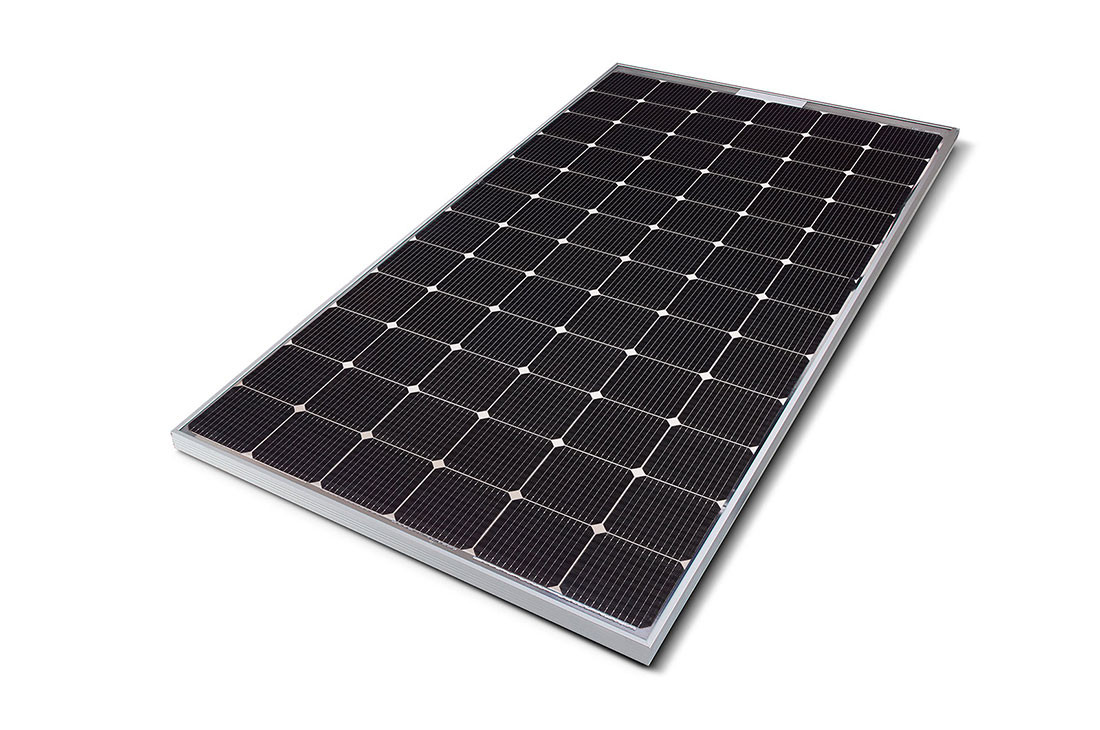

LG Solar 415w Mono Solar Panel - NeON2 - LG415N2W-V5 |
LG NeON 2 415 watt 72 cell pv module, 40 mm V5 series silver frame, white backsheet, LG415N2W-V5 ***For Commercial projects only***, LG Electronic's NeON 2 all black module series is one of the most powerful and beautiful modules available. 60 NeON 2 N-Type Mono cells with cello technology with MC4 Connectors. Energy output and overall module performance are boosted by LG's multi busbar Cello Technology. LG-335N1K-V5 comes with the LG's 25-25-25 warranty, one of the most comprehensive module warranties available today. The LG NeON® 2 is LG’s best selling solar module, and is one of the most powerful and versatile modules on the market today. Featuring LG’s Cello Technology, the LG NeON® 2 increases power output. New updates include an extended performance warranty from 86% to 90.08% to give customers higher performance and reliability. |
Features
|
General Information | |
Manufacturer: | LG Solar |
Product Line: |
NeON2 |
Model ID: |
LG415N2W-V5 |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Monocrystalline (Mono) |
Dimensions: |
79.69 x 40.31 x 1.57 inches |
Weight: | 44.75 lbs |
Cells: | 72 (6 x 12) |
Cell Type: | Monocrystalline / N-Type |
Connector Type: | MC4 / MC |
Cables: | 1200 mm x 2 Ea |
Glass: |
Tempered Glass with AR Coating |
Backsheet Color: | White |
Frame: | Anodized Aluminum |
Operating Temperature: | -40°C to +90°C |
Electrical Data |
|
Nominal Maximum Power (Pmax): | 405 Watts |
MPP Voltage (Vmpp): | 41.0 Volts |
MPP Current (Impp): | 9.89 Amps |
Open Circuit Voltage (Voc): | 49.4 Volts |
Short Circuit Voltage (Isc): | 10.51 Amps |
Module Efficiency: | 19.5% |
Datasheets |
|
Document | Type |
LG Electronics LG415N2W-V5 Specs | Specifications |
LG Electronics Installation Guide | Installation Guide |
Warranty | 25 Year Product Warranty |
Performance Guarantee | 25 Year Linear Performance Warranty |
LG Electronics Warranty | Warranty |
