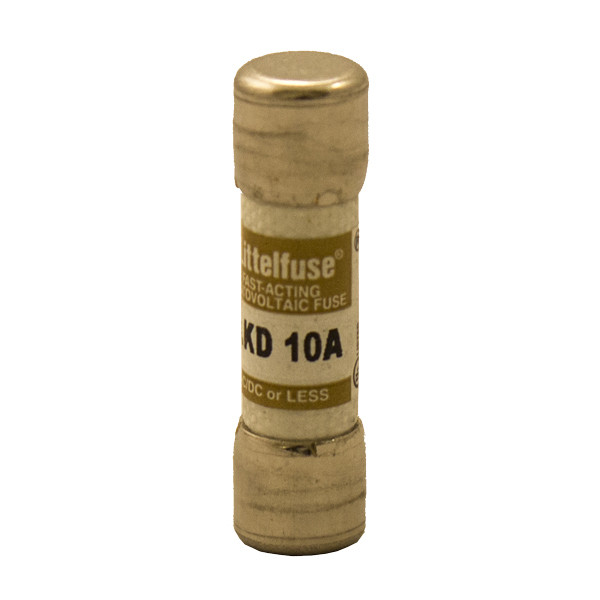

Littelfuse KLKD-10 10 Amp Midget Fuse
Hover over image to zoom
Littelfuse
Product Description
| Littelfuse Midget Fuse - KLKD-10 |
|
Littelfuse, 10 x 38 10 Amp 600VDC, Midget Fuse, KLKD-10 The KLKD fuse series is fast-acting with a high DC voltage rating. This family of Midget style fuses (10 x 38 mm) is used in solar combiner boxes and in circuits with DC fault currents up to 50,000 amperes. KLKD fuses are available in standard and board-mount configurations. In addition, the KLKD series has been designed to meet both the UL and IEC photovoltaic fuse standards. Littelfuse offers a wide range of ampere ratings to match specific requirements in a variety of applications. |
|
Features
|
| General Information | |
| Manufacturer: | Littelfuse |
| Product Line: |
Littelfuse Accessory |
| Model ID: |
KLKD-10 |
| Certifications and Safety Ratings: |    |
| Mechanical Data |
|
| Technology: | Midget Fuse |
| Dimensions: |
1.50 x 0.41 x 0.41 inches (KLKD-10 Dimensions) |
| Weight: | 0.02 lbs |
| Voltage Rating: | 600 VAC/VDC |
| Amperage Rating: | 1/10, 1/8, 2/10, 1/4, 3/10, 1/2, 3/4, 1, 1 1/2, 2, 2 1/2, 3, 3 1/2, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25, 30 |
| AC Interrupting Ratings: | 100 kA, 200 kA Littelfuse Self-Certified |
| DC Interrupting Ratings: | 1/10-30: 10 kA (UL 2579), 1/10-30: 50 kA (UL 248-14) |
| Material: | Body: Melamine; Caps: Copper Alloy |
| Operating Temperature: | See Rerating Curve |
| Approvals: | UL 279 Listed (File: E339112), IEC 60269-6 (2-25 A), VDE Certified (No. 40033094), UL 248-14 Listed (File: E10480), CSA Certfied Ferrule Only (File: LR29862) |
| Environmental: | RoHS Compliant |
| Country of Origin: | Mexico |
| Datasheets |
|
| Document | Type |
 Littelfuse KLKD-10 Specifications |
Specifications |
| Littelfuse KLKD-10 Installation Guide |
Installation Guide |
| Warranty |
See Download for Details |
| Littelfuse KLKD-10 Warranty |
Warranty |
