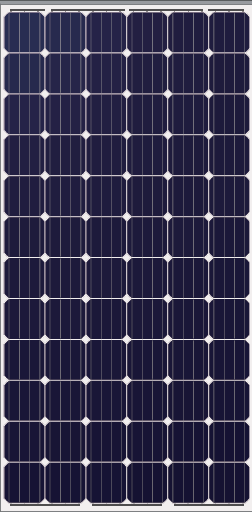

Longi Solar 370w Mono Solar Panel - LR6-72PH-370M |
Longi, 370W PV Module, PV Wire, 40mm Clear Frame, White Backsheet, 72 Cell Mono-Perc, 20A Fuse, 1500VDC, 345.6W PTC, LR6-72PH-370M Less components and lower cost. Excellent performance under the IEC and UL Standard for 1500V system voltage brings lower system side cost. Excellent PID-resistant performance. Passed more strict PID test with 85% RH, 85°C temperature, 1500 voltage. |
Features
|
General Information | |
Manufacturer: | Longi Solar |
Product Line: |
HiMO1 |
Model ID: |
LR6-72PH-370M |
Manufactured In: | Malaysia |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Monocrystalline (Mono) |
Dimensions: |
77.00 x 39.02 x 1.77 inches |
Frame Depth: | 40MM or 45MM |
Weight: | 58.42 lbs |
Cell Orientation: | 72 (6x12) |
Junction Box: | IP68, Three Diodes |
Output Cable: | 4mm², 1000mm in Length |
Connector: | MC4 or MC4 Compatible |
Power Output Tolerance: | 0~ +5W |
Maximum System Voltage: | DC1500V (IEC) |
Maximum Series Fuse Rating: | 15 Amps |
Application Class: | Class A |
Electrical Data |
|
Maximum Power (Pmax/W): | 370 Watts |
Open Circuit Voltage (Voc/V): | 48.30 Volts |
Short Circuit Current (Isc/A): | 9.84 Amps |
Voltage at Maximum Power (Vmp/V): | 39.40 Volts |
Current Maximum Power (Imp/A): | 9.39 Amps |
Module Efficiency: | 19.10% |
Front Side Maximum Static Loading: | 5400Pa |
Rear Side Maximum Static Loading: | 2400Pa |
Hailstone Test: | 25mm Hailstone at the Speed of 23m/s |
Datasheets |
|
Document | Type |
Longi Solar LR6-75PH-370M Specifications | Specifications |
Longi Solar Manual |
Manual |
Warranty | 10 Year Materials and Processing Warranty |
Performance Guarantee | 25 Year Extra Linear Power Output Warranty |
Longi Solar Warranty | Warranty |
Terms & Conditions |
|
Shipping: | Shipping Policy |
Returns: | Returns Policy |
Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Warranty: 10 Year Materials and Processing Warranty
Performance Guarantee: 25 Year Extra Linear Power Output Warranty
