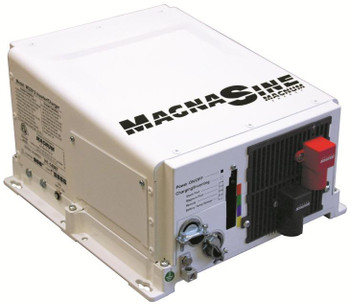

Magnum 2000W Battery INVERTER - MS2012-15B |
Magnum, MS2012 battery inverter, 2000W, 120VAC, 60Hz, 2x30A Transfer, 12VDC, Sinewave, Off Grid, 3 Yr Warr, 100A Charger, with BTS & 2x15A AC Breakers, MS2012-15B The MS2012-15B (MS Series) Inverter/Charger from Magnum Energy – a pure sine wave inverter designed specifically for the most demanding mobile, back-up, and off-grid applications. The MS Series is powerful, easy-to-use, and best of all, cost effective. |
Features
|
General Information | |
Manufacturer: | Magnum Energy |
Product Line: |
MS Series |
Model ID: |
MS2012-15B |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Battery Inverter |
Dimensions: |
13.75 x 12.65 x 8.00 inches |
Weight: | 42.00 lbs |
Maximum Operating Altitude: | 15,000 Feet |
Operating Temperature: | -20 to +60°C |
Operating Humidity: | 0 to 95% RH Non-Condensing |
Transfer Relay Capability: | 30 Amps Single Output |
Five Stage Charging Capability: | Bulk, Absorb, Float, Equalize (Requires Remote), and Battery Saver |
Battery Temperature Compensation: | 15 Foot Battery Temperature Sensor Standard |
Internal Cooling: | 0 to 120 CFM Variable Speed Drive Using Dual 92mm Brushless DC Fans |
Overcurrent Protection: | Two Overlapping Circuits |
Overtemperature Protection: | On Transformer MOSFETS, and Battery |
Dual AC Branch Rated Output Breakers: | Optional on the MS2000 and MS2012 - AC breakers in 15 or 20 amp ratings |
Certifications: | MS2000: ETL Listed to UL/cUL 458, CSA C22.2 #107.1-01, meets KKK-A-1822E standard / MS2012, MS2812, MS4024: ETL Listed to UL/cUL 458, UL 1741, CSA C22.2 #107.1-01, meets KKK-A-1822E standard / MS2024: NA |
Electrical Data |
|
Input Battery Voltage Range: | 9 to 17 VDC |
Nominal AC Output Voltage: | 120 VAC ± 5% |
Output Frequency and Accuracy: | 60 Hz ± 0.1 Hz |
Total Harmonic Distortion (THD): | < 5% |
Continuous Power Output at 25°C: |
2000 VA |
Maximum Continuous Input Current: | 266 ADC |
Inverter Efficiency: | 89% |
Transfer Time: | 16 MSECS |
Search Mode: | 7 Watts |
No Load: | 25 Watts |
Waveform: | Pure Sine Wave |
Charger Continuous Output at 25°C: | 100 ADC |
Charger Efficiency: | 85% |
Charger Power Factor: | > 0.95 |
Charger Input Current at Rated Output: | 15 |
Datasheets |
|
Document | Type |
Magnum Energy MS2012-15B Specifications | Specifications |
Magnum Energy MS2012-15B Installation Manual | Installation Guide |
Warranty | 3 Year Limited Warranty (5 Years When Installed on MMP or MP System) |
Magnum Energy MS2012-15B Warranty | Warranty |
