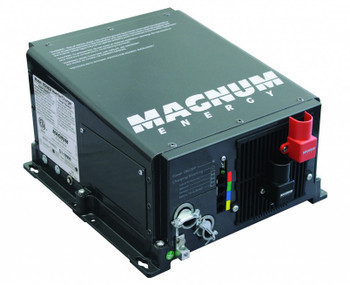

Magnum RD3924 3900w Battery Inverter
Hover over image to zoom
Product Description
| Magnum 3900W Battery INVERTER - RD3924 |
|
Magnum, RD3924 battery inverter, 3900W, 120VAC, 60Hz, 30A Transfer, 24VDC, Modified Sine, Off Grid, 2 Yr Warr, 105A Charger, with BTS, RD3924 The RD1824 (RD Series) Inverter / Charger is a new generation modified sine wave inverter designed specifically for renewable energy use. The RD Series is powerful, easy-to-use, and best of all, cost effective. |
|
Features
|
| General Information | |
| Manufacturer: | Magnum Energy |
| Product Line: |
RD Series |
| Model ID: |
RD3924 |
| Certifications and Safety Ratings: |    |
| Mechanical Data |
|
| Technology: | Battery Inverter |
| Dimensions: |
13.75 x 12.65 x 8.00 inches |
| Weight: | 53.00 lbs |
| Maximum Operating Altitude: | 15,000 Feet |
| Operating Temperature: | -20 to +60°C |
| Mounting: | Shelf or Wall (Vents Up) |
| Operating Humidity: | 0 to 95% RH Non-Condensing |
| Transfer Relay Capability: | 2 Legs at 30A for 120V/30A or 240V/60A Service |
| Five Stage Charging Capability: | Bulk, Absorb, Float, Equalize (Requires Remote), and Battery Saver |
| Battery Temperature Compensation: | 15 Foot Battery Temperature Sensor Standard |
| Internal Cooling: | 0 to 120 CFM Variable Speed Drive Using Dual 92mm Brushless DC Fans |
| Overcurrent Protection: | Two Overlapping Circuits |
| Overtemperature Protection: | On Transformer MOSFETS, and Battery |
| Certifications: | ETL Listed to UL1740 (USA Only) |
| Electrical Data |
|
| Input Battery Voltage Range: | 18 to 32 VDC |
| Nominal AC Output Voltage: | 120 VAC ± 5% |
| Output Frequency and Accuracy: | 60 Hz ± 0.1 Hz |
| Continuous Power Output at 25°C: |
3900 VA |
| Maximum Continuous Input Current: | 260 ADC |
| Inverter Efficiency: | 93% |
| Transfer Time: | 16 MSECS |
| Search Mode: | 5 Watts |
| No Load: | 25 Watts |
| Waveform: | Modified Sine Wave |
| Charger Continuous Output at 25°C: | 105 ADC |
| Charger Efficiency: | 32% |
| Charger Power Factor: | > 0.95 |
| Charger Input Current at Rated Output: | 29 AC Amps |
| Datasheets |
|
| Document | Type |
 Magnum Energy RD3924 Specifications |
Specifications |
| Magnum Energy RD3924 Installation Manual |
Installation Guide |
| Warranty | 2 Year Limited Warranty |
| Magnum Energy RD3924 Warranty |
Warranty |
| Terms & Conditions |
|
| Shipping: | Shipping Policy |
| Returns: | Returns Policy |
| Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Magnum Energy - Magnum RD3924 3900w Battery Inverter
Price:
Condition: new
Condition: new
Warranty Information
Warranty: 2 Year Limited Warranty
