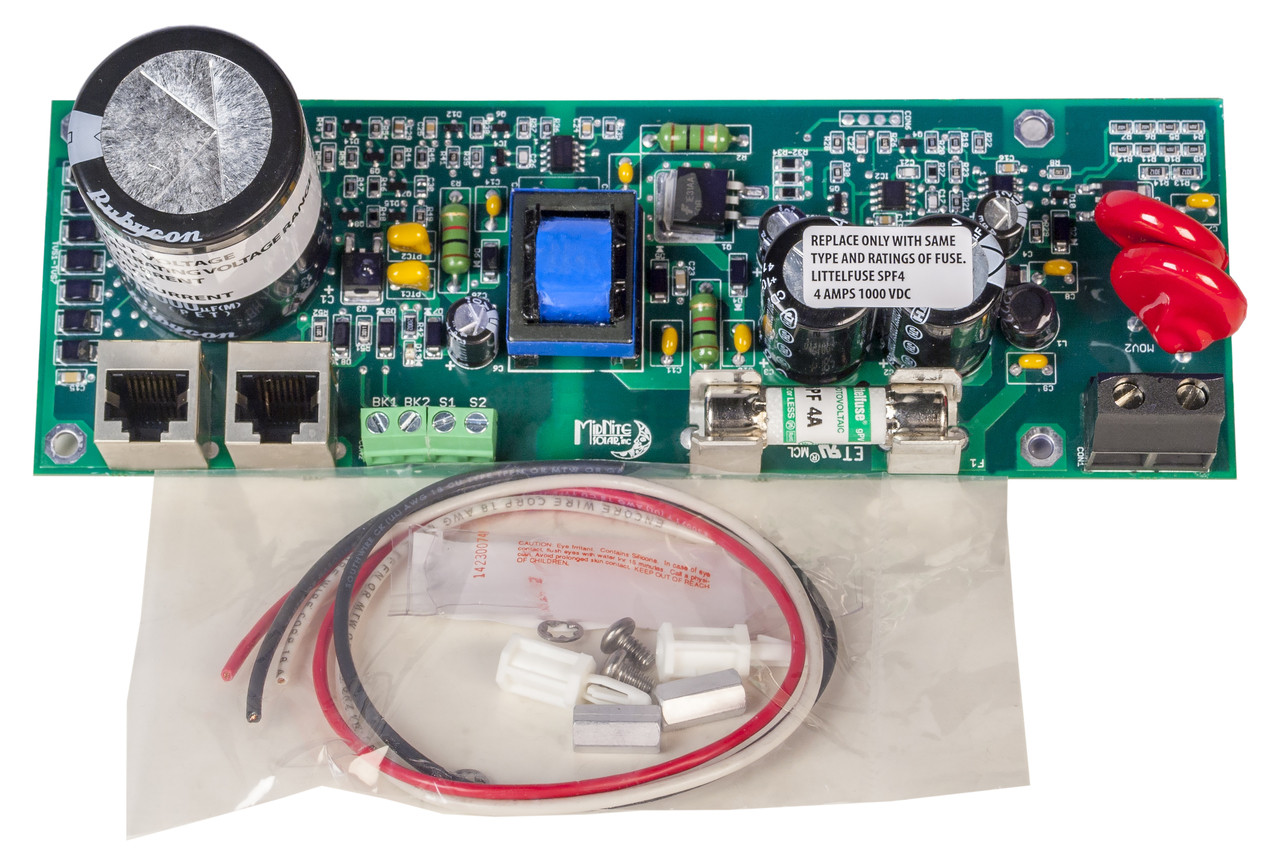

MidNite Solar MNDiscoPSB Power Supply Board

Midnite Solar, Power Supply Board for Disconnect Combiner, add for Birdhouse Compatibility, MNDiscoPSB

The Midnite Solar MNDiscoPSB is compatible with the Birdhouse.

The firefighter-approved MNBirdhouse1 remote actuator should be installed in a visible, easily accessible location so that the array combiners can safely be disconnected from the ground when necessary. The hard-wired connection to the disconnect combiners provides positive feedback that the disconnect on the roof has actually been thrown. One MNBirdhouse1 can be used to disconnect multiple combiners. The MNBirdhouse1 has a speaker and will announce when it is safe to climb onto the roof, and during the day it will inform that there is still voltage present up to the combiner. At night, it will announce that there is no PV voltage present. The MNBirdhouse1 is powered by multiple redundant sources. It is available in either red or gray. Each combiner can be powered using the array with the MNDiscoPSB power supply that will also power the MNBirdhouse1. The MNBirdhouse1 also comes with an indoor 120 VAC power supply that can be used as a DC supply, and has an internal backup battery. The power draw of the MNBirdhouse1 is only 1 W. Use the special MNCAT5-600 600 V CAT5 USE-2 compliant wire to connect the Birdhouse and combiners.

The MNBDM battery disconnect module can be used to power a remote actuating breaker to disconnect circuits including battery, charge controller, or generator circuits. Can be used in 24, 36, and 48 VDC systems.

The MNFX-CABLE should be used in the MNBirdhouse1 when there are no combiners connected to it.

Features

• User Friendly - Designed for easy installation and compatibility.
