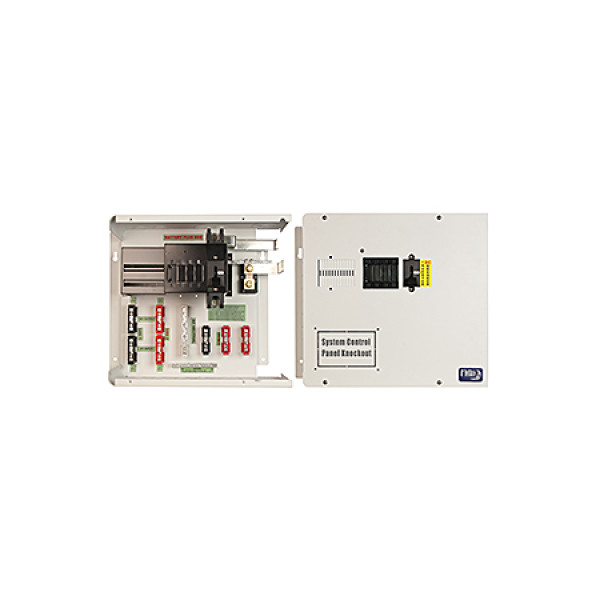

MidNite Solar MNE175SW SW Inverter E-Panel

Midnite Solar, 175A, 120/240VAC, E-Panel for Schneider SW Inverters, MNE175SW

E-Panel for a single Schneider Electric Conext SW Inverter/charger. The SW Inverter is mounted directly to the right of the E-Panel. Available with the 175 amp breaker (MNE175SW) for the SW2524 or with the 250 amp breaker (MNE250SW) for the SW4024.

The MNE250SW or MNE175SW is mounted next to the SW inverter. It includes a 250 A, or 175 A inverter/battery breaker. There are knockouts for up to 6 DIN-mount breakers and 4 panel-mount breakers, and a 500 A shunt. Tin-plated copper busbars connect to the XW’s battery terminals. There are busbars for AC inputs, AC output, neutral, ground, PV + in, PV - in, Bat +, and Bat -. There are knockouts on top for two charge controllers. The color-matched enclosure is 17.6"W x 15.2"H x 7.5"D, and weighs 23 lbs.

The MNSW-SLIDER-30 has 30 A input and 50 A output/bypass breakers for a single-inverter installation.

The MNSW-SLIDER-50 has 50 A input/output/bypass breakers for a dual-inverter installation.

The MNSW-BACKPLATE will mount both the SW E-panel and one SW inverter. Dimensions are 20”H x 33”L x 1.5”D, and weighs 15 lbs.

Features

• Highlights - Easy installation and high compatibility.
