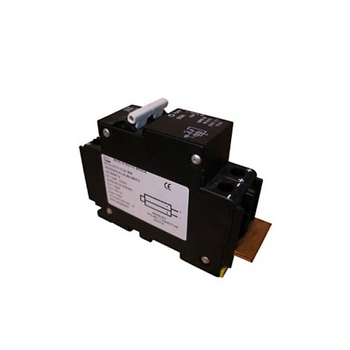

MidNite Solar Circuit Breaker - MNEPV50-300 |
Midnite Solar, 50A 300VDC DIN Mount 1-Pole Circuit Breaker, MNEPV50-300 All MidNite circuit breakers are rated for 100% continuous duty. Midnight’s breakers are rated to break the full rated load at the rated voltage repeatedly, with no damage. Always use a properly sized breaker for disconnecting. DIN-mount breakers fit MidNite Solar and Magnum Energy enclosures, and MidNite Solar and OutBack Power PV array combiners. These breakers are polarized, so the positive wire from the power source needs to be connected to the "+" side of the breaker. The maximum PV array voltage must not exceed the voltage rating of the breakers used. The 600 VDC breakers also have a remote-trip actuator, useful for rapid shutdown. |
Features
|
General Information | |
Manufacturer: | MidNite Solar |
Product Line: |
MN Series |
Model ID: |
MNEPV50-300 |
Manufactured In: | United States of America |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Circuit Breaker |
Dimensions: |
1.00 x 0.51 x 0.25 inches |
Weight: | 1.00 lbs |
Rated Amps: | 50 Amps |
Number of Poles: | 2 |
Datasheets |
|
Document | Type |
MidNite Solar MNEAC50-2P Dimensions | Dimensions Diagram |
Midnite Solar MNEAC50-2P Torque | Torque Value Overview |
Warranty | 2 Year Standard Warranty |
MidNite Solar MNEAC50-2P Warranty | Warranty |
Terms & Conditions |
|
Shipping: | Shipping Policy |
Returns: | Returns Policy |
Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Warranty: 2 Year Standard Warranty
