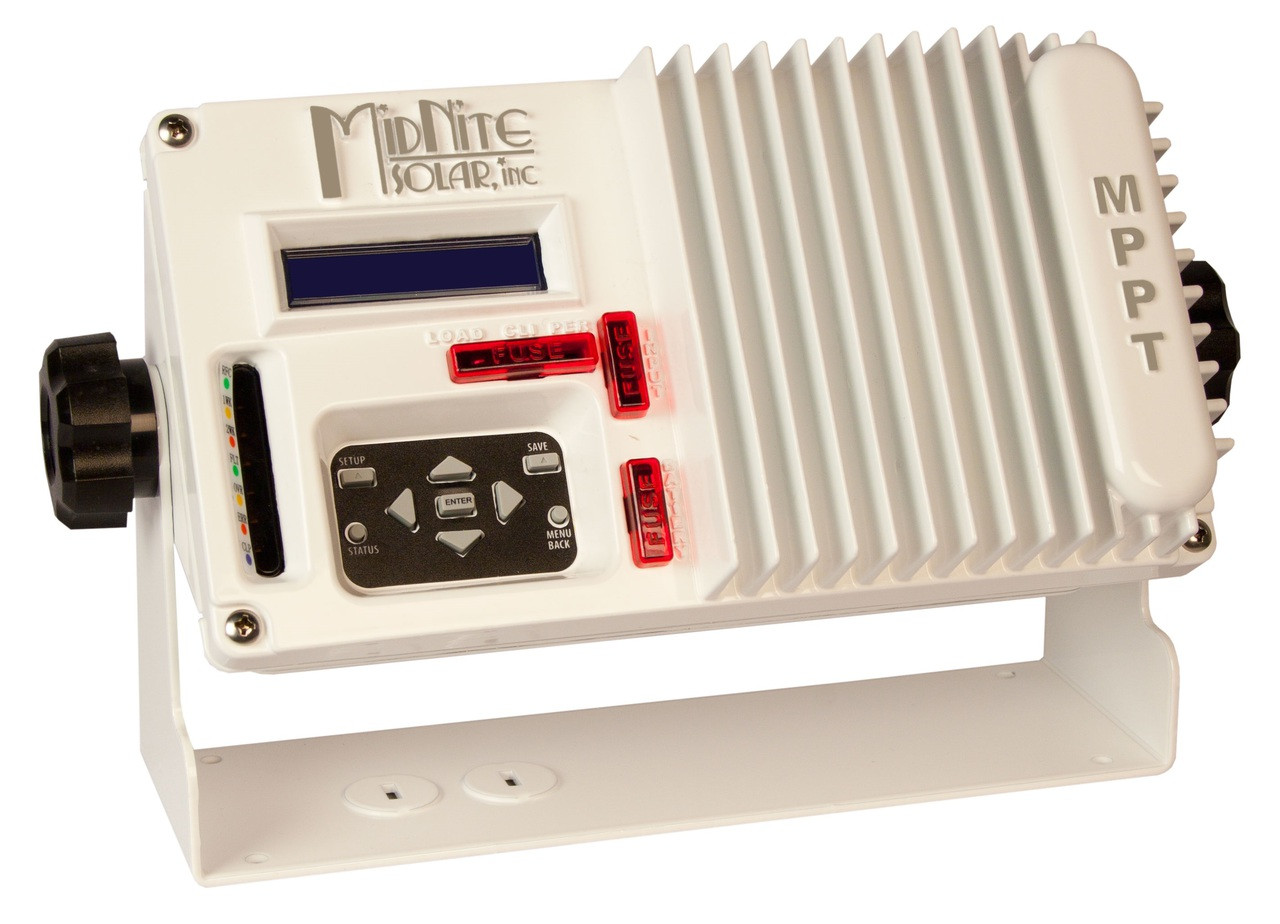

MidNite Solar MNKID-W The Kid MPPT Charge Controller

The KID MPPT Charge Controller, 150VDC, 30A, 12-48V Battery, with LCD & Wall Mount Bracket, White.

The MidNite KID 30 A MPPT charge controllers are suitable for small to medium-sized renewable energy systems. The KID works with 12, 24, 36, and 48 VDC battery systems and has a 150 VDC operating limit; but is not damaged with DC voltages as high as 162 VDC, due to MidNite’s HyperVOC circuitry. The KID has a three-LED bar graph, showing battery-charge status, and a keypad to access extensive menu items and set-points.The MidNite KID 30 A MPPT charge controllers are suitable for small to medium-sized renewable energy systems. The KID works with 12, 24, 36, and 48 VDC battery systems and has a 150 VDC operating limit; but is not damaged with DC voltages as high as 162 VDC, due to MidNite’s HyperVOC circuitry. The KID has a three-LED bar graph, showing battery-charge status, and a keypad to access extensive menu items and set-points.

The KID controllers include a load control with load low-voltage disconnect (LVD). This can also be programmed as a lighting controller with dusk-to-dawn or various other on and off times. There is also a programmable AUX relay.

Sealed electronics and passive cooling (no fans) make it ideal for use in harsh environments. There are front-panel breakers for input, battery, and load. The controller’s operating temperature range is -40 ºC to +50 ºC but the controller will automatically de-rate at temperatures above 25 ºC. Add the battery-temperature sensor (BTS) to these models.

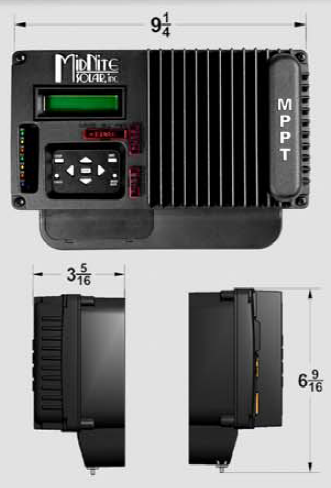

ETL Listed to UL1741 and UL458 for the U.S.A. and Canada. CE Certified. FCC Class B compliant. Dimensions are 9.25”L x 5”H (6.6”H with wall-mount adapter) x 3.4”D. NEMA 1 (IP64) indoor rating. Available in either white or black casing. Made in U.S.A. and has a 2-year warranty.

The MNKID-M Marine version comes standard with the MNKID-M-BKT Boat Mounting Bracket, flexible conduit, battery-temperature sensor and extra conformal coating.

Check out MidNite Solar's MNKID Sizing Tool here.

*The MNKID comes in both black and white colored casing models. Also check out The MNKID-ASSY-KIT-W Accessory Kit for additional mounting solutions.

Features

• Modern Technology & Value - The KID includes MPPT tracking technology. True paralleling - inputs and outputs for two KID's. Up to 150V input. MidNite's exclusive HyperVOC extends the input voltage beyond 150 VOC for cold climates.

• Versitile & Customizable - 12V, 24v, 36V, 48V battery output. Lighting Controller:  dusk-dawn, hourly, day, night settings. Up to 30 amps battery output with low input voltage based off of PV configuration. Stays quiet with no fan needed. Includes wall mount adapter.

• Safe & Reliable - Reverse polarity protected. Sealed for harsh environments. The KID is certified to UL1741, UL458, and CSA.
