Mission Solar 295w Mono Solar Panel - MSE295SQ5T |
Mission Solar MSE PERC 60 Cell, Mono, Black on Black, 295w, MC4 Connectors, USA-Made, MSE295SQ5T MSE PERC 60’s slick all-black design coupled with outstanding power output makes it ideal for DG installations including commercial and rooftop systems.Passivized Emitter Rear Contact (PERC) technology provides excellent power output through advanced cell structure.Mission Solar Energy production lines are fully automated and include multiple quality checks throughout the production process.. Proudly assembled in the USA. Mission Solar Energy is headquartered in San Antonio, TX with module facilities onsite. Their hardworking team calls Texas home and is devoted to producing high quality solar products and services. Our supply chain includes local and domestic vendors increasing our impact to the US economy. Certifications: IEC 61215/ IEC 61730/ IEC 61701 UL 1703: CSA |
Features
|
General Information | |
Manufacturer: | Mission Solar Energy |
Product Line: |
MSE PERC |
Model ID: |
MSE295SQ5T |
Compliance: | Buy American Act (BAA) |
Certifications and Safety Ratings: | ![]() ![]() ![]() ![]() ![]() |
Mechanical Data |
|
Technology: | Monocrystalline (Mono) |
Dimensions: |

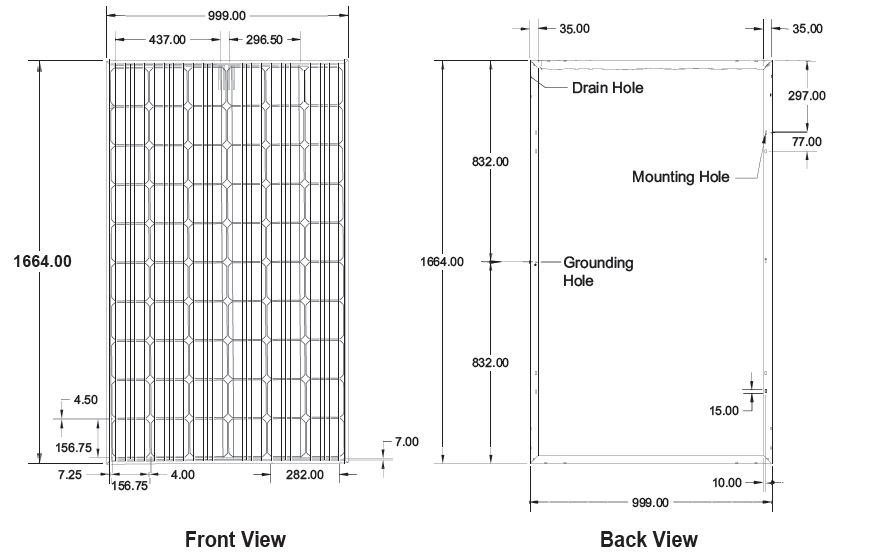

65.51 x 39.33 x 1.57 inches (MSE295SQ5T Dimensions) |
Weight: | 40.10 lbs |
Solar Cells: | P-Type Mono-Crystalline Silicon |
Cell Orientation: | 60 Cells (6x10), 4 Busbar |
Front Glass: | 3.2mm (0.126 in.) Tempered, Low-Iron, Anti-Reflective Coating |
Frame: | Anodized Aluminum Alloy |
Encapsulant: | Ethylene Vinyl Acetate (EVA) |
J-Box: | Protection Class IP67 with 3 Bypass-Diodes |
Candles: | PV Wire, 1m (39.37 in.), 4mm²/12 AWG |
Connector: | MC4 or Compatible |
Electrical Data |
|
Power Output: | 295 Watts |
Module Efficiency: | 17.75% |
Tolerance: | 0+3% |
Short Circuit Current (Isc): | 9.52 Amps |
Open Circuit Voltage (Voc): | 40.11 Volts |
Rated Current (Imp): | 9.03 Amps |
Rated Voltage (Vmp): | 32.72 Volts |
Datasheets |
|
Document | Type |
![]() |
Specifications |
![]() |
Installation Guide |
Warranty | 25 Year Product Warranty |
![]() |
Warranty |
Terms & Conditions |
|
Shipping: | Shipping Policy |
Returns: | Returns Policy |
Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Warranty: 25 Year Product Warranty
