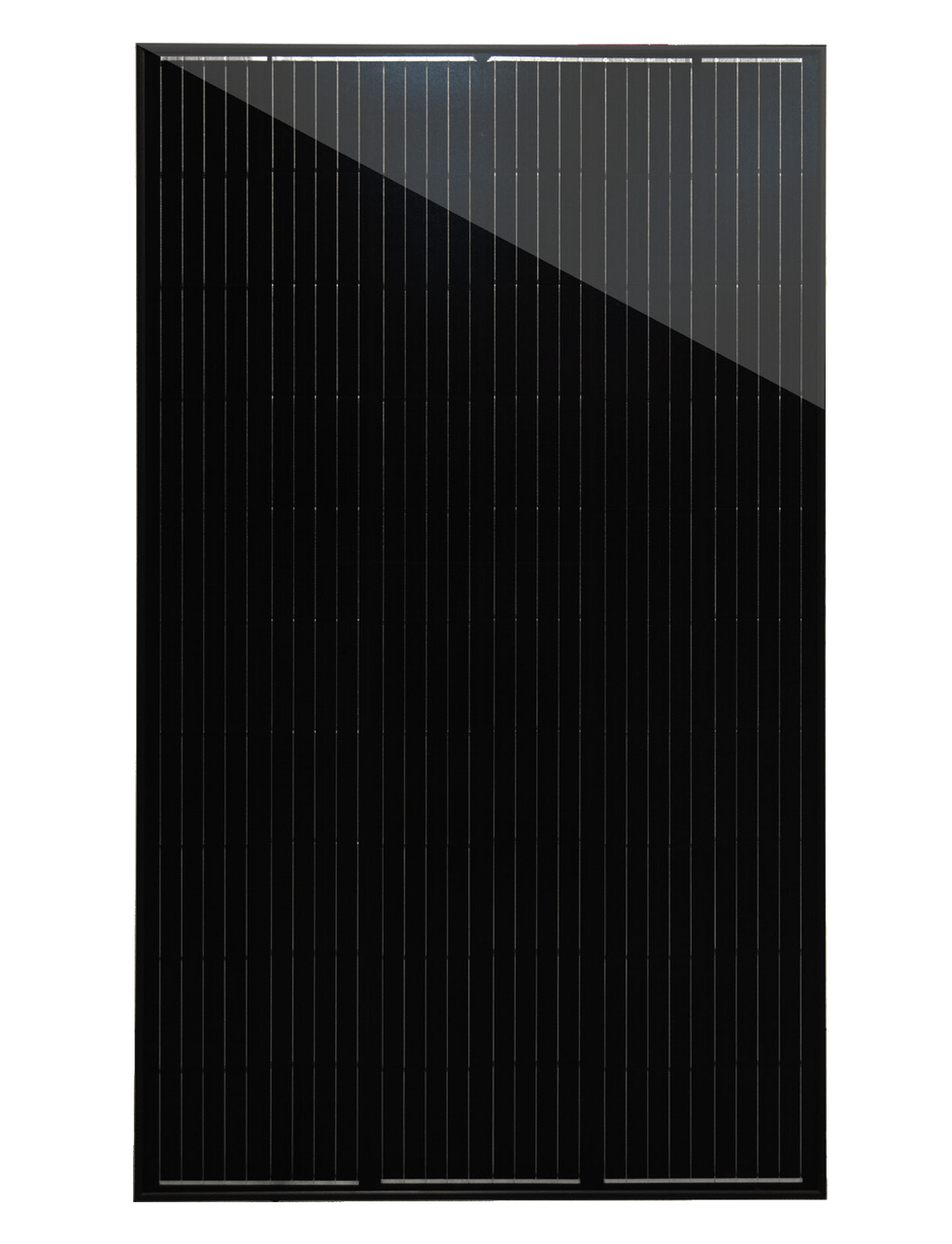

Mission Solar 305w Mono Solar Panel - MSE305SQ8T |
Mission, 305W PV Module, MC4 or Compatible, PV Wire, 40mm Black Frame, Black Back Sheet, BoB, 60 Cell Mono-Perc, 20A Fuse, 1000VDC, 5BB, BAA, No PTC, MSE305SQ8T Mission Solar Energy is headquartered in San Antonio, TX with module facilities onsite. They produce American quality products ensuring the highest power output and reliability for any solar installation. Their product line is well suited for residential, commercial and utility applications. Every Mission Solar Energy product is certified and surpasses industry standard regulations, proving excellent performance over the long-term. |
Features
|
General Information | |
Manufacturer: | Mission Solar Energy |
Product Line: |
MSE PERC 60 |
Model ID: |
MSE305SQ8T |
Compliance: | Buy American Act (BAA) |
Certifications and Safety Ratings: | ![]() ![]() ![]() ![]() ![]() |
Mechanical Data |
|
Technology: | Monocrystalline (Mono) |
Dimensions: |
65.51 x 39.33 x 1.57 inches (MSE305SQ8T Dimensions) |
Weight: | 40.10 lbs |
Solar Cells: | P-Type Mono-Crystalline Silicon |
Cell Orientation: | 60 Cells (6x10), 5 Busbar |
Front Glass: | 3.2mm (0.126 in.) Tempered, Low-Iron, Anti-Reflective Coating |
Frame: | Anodized Aluminum Alloy (Black) |
Encapsulant: | Ethylene Vinyl Acetate (EVA) |
J-Box: | Protection Class IP67 with 3 Bypass-Diodes |
Candles: | PV Wire, 1m (39.37 in.), 4mm²/12 AWG |
Connector: | MC4 |
Electrical Data |
|
Power Output: | 305 Watts |
Module Efficiency: | 18.35% |
Tolerance: | 0+3% |
Short Circuit Current (Isc): | 9.66 Amps |
Open Circuit Voltage (Voc): | 40.10 Volts |
Rated Current (Imp): | 9.20 Amps |
Rated Voltage (Vmp): | 33.14 Volts |
Datasheets |
|
Document | Type |
![]() |
Specifications |
![]() |
Installation Guide |
Warranty | 12 Year Product Warranty |
Product Warranty | 25 Year Linear Performance Warranty |
![]() |
Warranty |
Terms & Conditions |
|
Shipping: | Shipping Policy |
Returns: | Returns Policy |
Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Warranty: 12 Year Product Warranty
Product Warranty: 25 Year Linear Performance Warranty
