Mission Solar 310w Mono Solar Panel - MSE310SQ8T |
Mission, 310W PV Module, MC4, PV Wire, 40mm Black Frame, Black Back Sheet, BoB, 60 Cell Mono-Perc, 20A Fuse, 1000VDC, 5BB, BAA, 285.8 PTC, MSE310SQ8T Mission Solar Energy is headquartered in San Antonio, TX with module facilities onsite. They produce American quality products ensuring the highest power output and reliability for any solar installation. Their product line is well suited for residential, commercial and utility applications. Every Mission Solar Energy product is certified and surpasses industry standard regulations, proving excellent performance over the long-term. |
Features
|
General Information | |
Manufacturer: | Mission Solar Energy |
Product Line: |
MSE PERC 60 |
Model ID: |
MSE310SQ8T |
Compliance: | Buy American Act (BAA) |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Monocrystalline (Mono) |
Dimensions: |

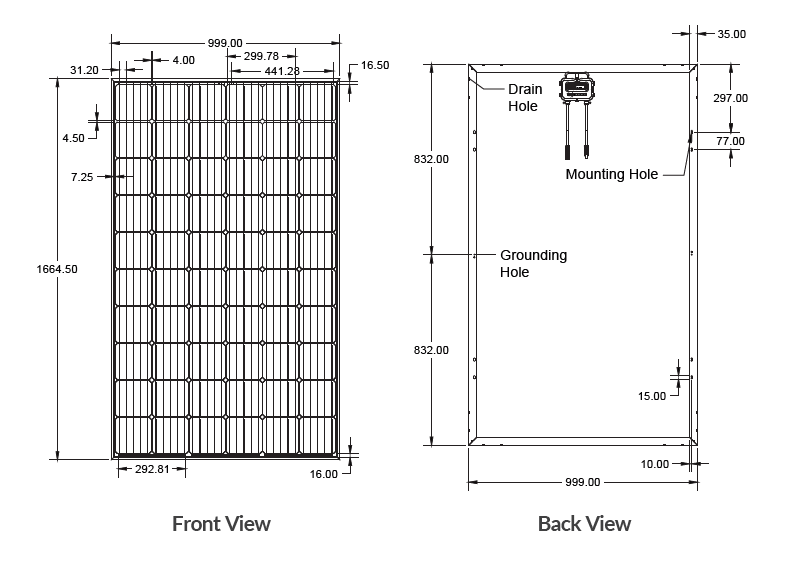

65.51 x 39.33 x 1.57 inches (MSE310SQ8T Dimensions) |
Weight: | 40.10 lbs |
Solar Cells: | P-Type Mono-Crystalline Silicon |
Cell Orientation: | 60 Cells (6x10), 5 Busbar |
Front Glass: | 3.2mm (0.126 in.) Tempered, Low-Iron, Anti-Reflective Coating |
Frame: | Anodized Aluminum Alloy (Black) |
Encapsulant: | Ethylene Vinyl Acetate (EVA) |
J-Box: | Protection Class IP67 with 3 Bypass-Diodes |
Candles: | PV Wire, 1m (39.37 in.), 4mm²/12 AWG |
Connector: | MC4 |
Electrical Data |
|
Power Output: | 310 Watts |
Module Efficiency: | 18.65% |
Tolerance: | 0+3% |
Short Circuit Current (Isc): | 9.76 Amps |
Open Circuit Voltage (Voc): | 40.12 Volts |
Rated Current (Imp): | 9.35 Amps |
Rated Voltage (Vmp): | 33.17 Volts |
Datasheets |
|
Document | Type |
Mission Solar MSE310SQ8T Specs | Specifications |
Mission Solar Installation Guide | Installation Guide |
Warranty | 12 Year Product Warranty |
Product Warranty | 25 Year Linear Performance Warranty |
Mission Solar Warranty | Warranty |
