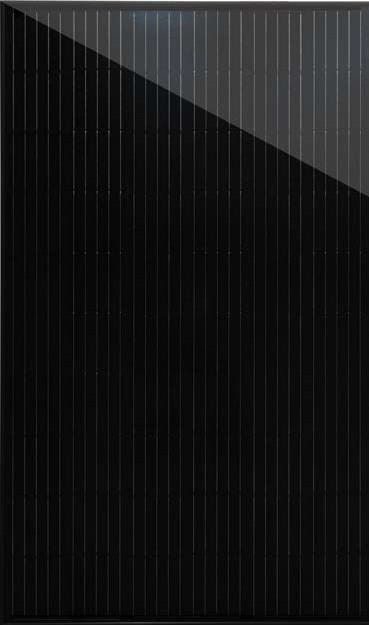

Mission Solar MSE310TS60 310w Mono Solar Panel

Hover over image to zoom

  • MSE310TS60
Mission Solar
Discontinued
SKU: SLR-110-1230
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 41.90 LBS

 Product Description

Mission Solar 310w Mono Solar Panel - MSE60TS310

Mission, 310W PV Module, MC4, PV Wire, 33mm Black Frame, Black Back Sheet, BoB, 60 Cell Mono-Perc, 20A Fuse, 1000VDC, 5BB, BAA, No PTC, MSE310TS60

Proudly assembled in the USA. Mission Solar Energy is headquartered in San Antonio, TX with module facilities onsite. Their hardworking team calls Texas home and is devoted to producing high quality solar products and services. Our supply chain includes local and domestic vendors increasing our impact to the US economy.

Features

  • Certified Reliability - Tested to UL1703 standards. PID resistant.
  • Superior Aesthetics - All black design coupled with outstanding power output. Ideal for residential and commercial applications.
  • Excellent Weather Resilience - 3600 Pa snow laod (75 psf) tested to UL1703.



General Information
Manufacturer: Mission Solar Energy
Product Line:
MSE PERC 60A
Model ID:
MSE60TS310
Compliance: Buy American Act (BAA)
Certifications and Safety Ratings: ul.jpg  iec.jpg  made-in-america.png  tuv.jpg  csa.jpg



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:
64.57 x 39.06 x 1.30 inches
Weight: 41.90 lbs
Solar Cells: P-Type Mono-Crystalline Silicon
Cell Orientation: 60 Cells (6x10), 5 Busbar
Front Glass: 3.2mm (0.126 in.) Tempered, Low-Iron, Anti-Reflective Coating
Frame: Anodized Aluminum Alloy
Encapsulant: Ethylene Vinyl Acetate (EVA)
J-Box: Protection Class IP67 with 3 Bypass-Diodes
Candles: PV Wire, 1m (39.37 in.), 4mm²/12 AWG
Connector: MC4



Electrical Data

Power Output: 310 Watts
Module Efficiency: 19.1%
Tolerance: -0+5%
Short Circuit Current (Isc): 10.21 Amps
Open Circuit Voltage (Voc): 41.14 Volts
Rated Current (Imp): 9.40 Amps
Rated Voltage (Vmp): 32.97 Volts



Datasheets

Document Type
logo-adobe-pdf-2.jpgMission Solar MSE60TS310 Specs Specifications
logo-adobe-pdf-2.jpgMission Solar Installation Guide Installation Guide
Warranty 12 Year Product Warranty
Performance Warranty 25 Year Linear Performance Warranty
logo-adobe-pdf-2.jpgMission Solar Warranty Warranty
