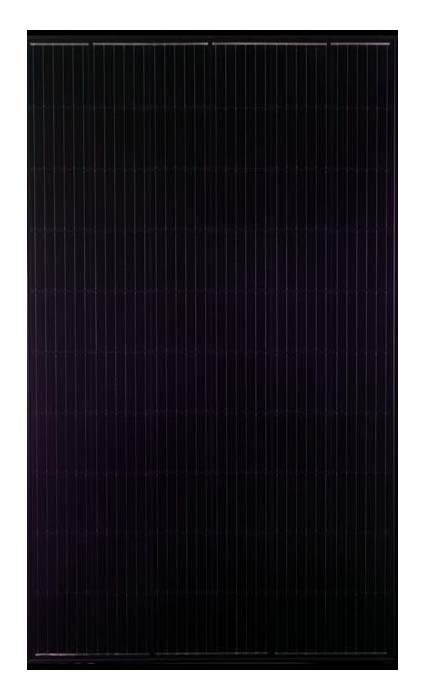

Mission Solar MSE340SX5T 340w Mono Solar Panel

MSE340SX5T

Hover over image to zoom

  • MSE340SX5T
Mission Solar
Discontinued
SKU: SLR-110-1338
Note: Ships LTL Freight.
Condition: New
Weight: 44.80 LBS
Minimum Purchase: 2 unit(s)
  • Buy 4 - 11 and get 1% off
  • Buy 12 - 23 and get 2% off
  • Buy 24 or above and get 3% off

 Product Description

Mission Solar 340w Mono Solar Panel - MSE340SX5T

Mission, 340W PV Module, MC4, 1.0m (~39.4”) PV Wire, 40mm Black Frame, Black Back Sheet, BOB, 60 Cell Mono-Perc, 20A Fuse, 1000VDC, 6BB, BAA, 316.6 PTC, 25/25 Warranty, MSE340SX5T

Proudly assembled in the USA. Mission Solar Energy is headquartered in San Antonio, TX with module facilities onsite. Their hardworking team calls Texas home and is devoted to producing high quality solar products and services. Our supply chain includes local and domestic vendors increasing our impact to the US economy.

Features

  • Certified Reliability - Tested to UL61730 and IEC standards. PID resistant. Resistant to salt mist corrosion. BAA Compliant for government projects.
  • Advanced Technology - PERC and 6 busbar drive >18.7% module efficiency. Ideal for all applications.
  • Excellent Weather Resilience - 5600 Pa front and 4800 Pa back load. Tested load to UL 61730.



General Information
Manufacturer: Mission Solar Energy
Product Line:
 MSE PERC 60
Model ID:
 MSE340SX5T
Compliance: Buy American Act (BAA)
Certifications and Safety Ratings: ul.jpg  iec.jpg  made-in-america.png  tuv.jpg  csa.jpg



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:
 68.82 x 44.8 x 1.58 inches
Weight: 44.8 lbs
Solar Cells: P-Type Mono-Crystalline Silicon
Cell Orientation: 60 Cells (6x10)
Front Glass: 3.2mm (0.126 in.) Tempered, Low-Iron, Anti-Reflective Coating
Frame: Anodized
Encapsulant: Ethylene Vinyl Acetate (EVA)
J-Box: Protection Class IP67 with 3 Bypass-Diodes



Electrical Data

Power Output: 340 Watts
Module Efficiency: 18.5%
Tolerance: -0+3%
Short Circuit Current (Isc): 10.86 Amps
Open Circuit Voltage (Voc): 40.82 Volts
Rated Current (Imp): 10.24 Amps
Rated Voltage (Vmp): 33.20 Volts



Datasheets

Document Type
logo-adobe-pdf-2.jpgMission Solar MSE-SX5T Specs Specifications
logo-adobe-pdf-2.jpgMission Solar Installation Guide Installation Guide
Warranty 12 Year Product Warranty
Performance Warranty 25 Year Linear Performance Warranty
logo-adobe-pdf-2.jpgMission Solar Warranty Warranty
