Mission Solar 360w Mono Solar Panel - MSE360SQ6S |
Mission, 360W PV Module, MC4 or Compatible, PV Wire, 40mm Silver Frame, 72 Cell Mono, 15A Fuse, 1000VDC, 4BB, BAA, 322.3 PTC, MSE360SQ6S - Ships LTL Freight Proudly assembled in the USA. Mission Solar Energy is headquartered in San Antonio, TX with module facilities onsite. Their hardworking team calls Texas home and is devoted to producing high quality solar products and services. Our supply chain includes local and domestic vendors increasing our impact to the US economy. Certifications: IEC 61215/ IEC 61730/ IEC 61701 UL 1703 |
Features
|
General Information | |
Manufacturer: | Mission Solar Energy |
Product Line: |
MSE PERC 72 |
Model ID: |
MSE360SQ6S |
Compliance: | Buy American Act (BAA) |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Monocrystalline (Mono) |
Dimensions: |

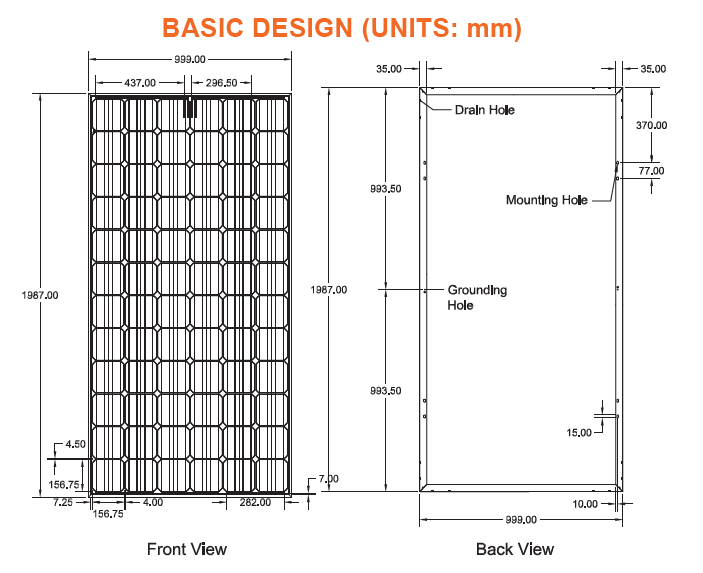

78.23 x 39.33 x 1.57 inches (MSE360SQ6S Dimensions) |
Weight: | 47.60 lbs |
Solar Cells: | P-Type Mono-Crystalline Silicon |
Cell Orientation: | 72 Cells (6x12), 4 Busbar |
Front Glass: | 3.2mm (0.126 in.) Tempered, Low-Iron, Anti-Reflective Coating |
Frame: | Anodized Aluminum Alloy |
Encapsulant: | Ethylene Vinyl Acetate (EVA) |
J-Box: | Protection Class IP67 with 3 Bypass-Diodes |
Candles: | PV Wire, 1.2m (47.24 in.), 4mm²/12 AWG |
Connector: | MC4 or Compatible |
Electrical Data |
|
Power Output: | 360 Watts |
Module Efficiency: | 18.36% |
Tolerance: | 0+3% |
Short Circuit Current (Isc): | 9.79 Amps |
Open Circuit Voltage (Voc): | 48.08 Volts |
Rated Current (Imp): | 9.28 Amps |
Rated Voltage (Vmp): | 39.28 Volts |
Datasheets |
|
Document | Type |
Mission Solar MSE360SQ6S Specs | Specifications |
Mission Solar Installation Guide | Installation Guide |
Warranty | 25 Year Product Warranty |
Mission Solar Warranty | Warranty |
Terms & Conditions |
|
Shipping: | Shipping Policy |
Returns: | Returns Policy |
Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Warranty: 25 Year Product Warranty
