Mission Solar MSE375SQ9S 375w Mono Solar Panel

MSE375SQ9S

Hover over image to zoom

  • MSE375SQ9S
Mission Solar
Discontinued
SKU: SLR-110-1210
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 47.60 LBS
  • Buy 4 - 11 and get 1% off
  • Buy 12 - 23 and get 2% off
  • Buy 24 or above and get 3% off

 Product Description

Mission Solar 375w Mono Solar Panel - MSE375SQ9S

Mission, 375W PV Module, MC4, PV Wire, 40mm Clear Frame, White Back Sheet, 72 Cell Mono-Perc, 20A Fuse, 1000VDC, 5BB, BAA, 345.7 PTC, MSE375SQ9S

Proudly assembled in the USA. Mission Solar Energy is headquartered in San Antonio, TX with module facilities onsite. Their hardworking team calls Texas home and is devoted to producing high quality solar products and services. Our supply chain includes local and domestic vendors increasing our impact to the US economy.

Certifications: IEC 61215/ IEC 61730/ IEC 61701 UL 1703

Features

  • Outstanding Performance with PERC - Passivated Emitter Rear Contact (PERC) technology provides excellent power output through advanced cell structure.
  • Best in Class Quality- Mission Solar Energy production lines are fully automated and include multiple quality checks throughout the production processing including 2X EL Testing, 100% Vision inspection, and positive binning.
  • Proven Reliability and Bankability - Mission Solar Energy panels have been tested by independent testing centers to meet and exceed IEC standards. Our panels are deployed in projects across North America.



General Information
Manufacturer: Mission Solar Energy
Product Line:
 MSE PERC 72
Model ID:
 MSE375SQ9S
Compliance: Buy American Act (BAA)
Certifications and Safety Ratings: ul.jpg  iec.jpg  made-in-america.png  tuv.jpg  csa.jpg



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:

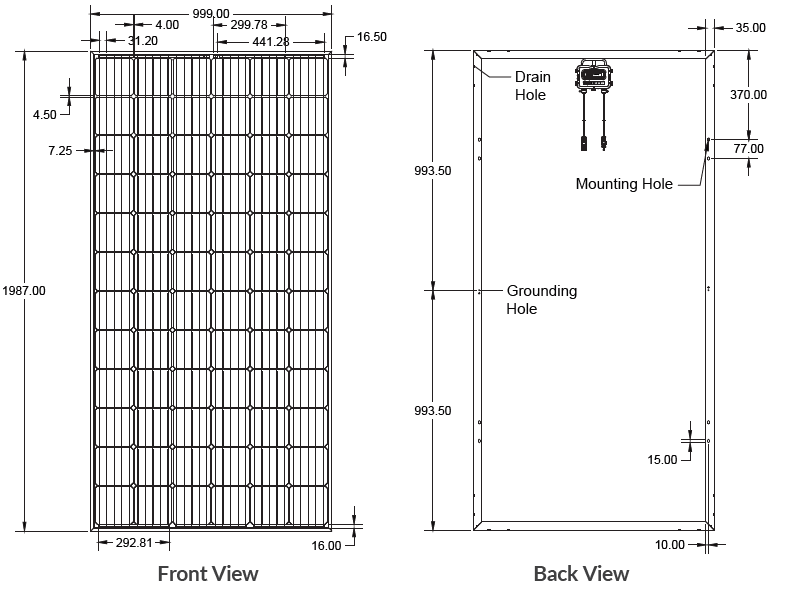

 78.23 x 39.33 x 1.57 inches (MSE375SQ9S Dimensions)
Weight: 47.60 lbs
Solar Cells: P-Type Mono-Crystalline Silicon
Cell Orientation: 72 Cells (6x12), 4 Busbar
Front Glass: 3.2mm (0.126 in.) Tempered, Low-Iron, Anti-Reflective Coating
Frame: Anodized Aluminum Alloy
Encapsulant: Ethylene Vinyl Acetate (EVA)
J-Box: Protection Class IP67 with 3 Bypass-Diodes
Candles: PV Wire, 1.2m (47.24 in.), 4mm²/12 AWG
Connector: MC4



Electrical Data

Power Output: 375 Watts
Module Efficiency: 18.89%
Tolerance: 0+3%
Short Circuit Current (Isc): 9.83 Amps
Open Circuit Voltage (Voc): 48.16 Volts
Rated Current (Imp): 9.43 Amps
Rated Voltage (Vmp): 39.76 Volts
Fuse Rating: 20 Amps



Datasheets

Document Type
logo-adobe-pdf-2.jpgMission Solar MSE375SQ9S Specs Specifications
logo-adobe-pdf-2.jpgMission Solar Installation Guide Installation Guide
Warranty 10 Year Product Warranty
Performance Warranty 25 Year Linear Performance Warranty
logo-adobe-pdf-2.jpgMission Solar Warranty Warranty
