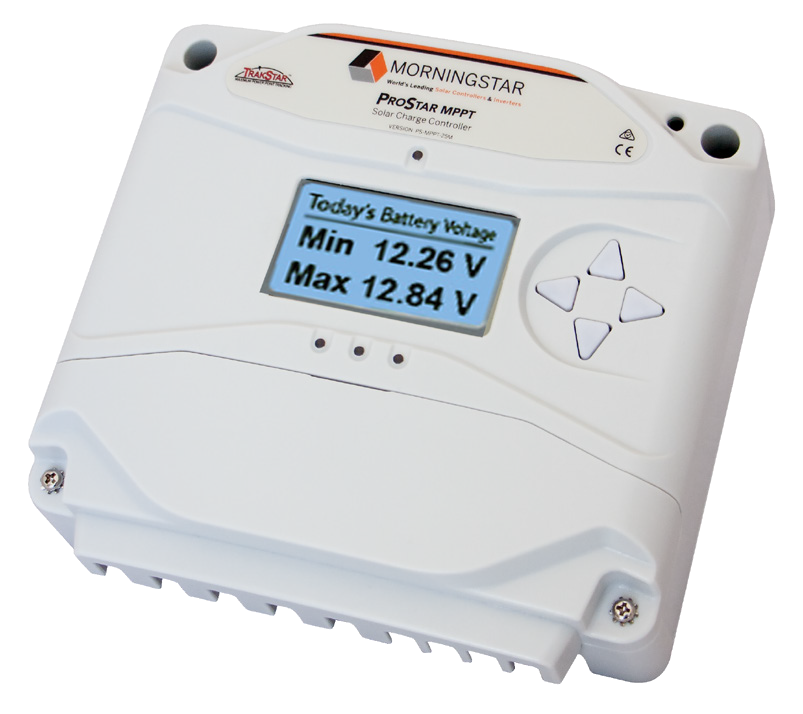

Morningstar ProStar PS-MPPT-40 MPPT Charge Controller

Hover over image to zoom

  • PS-MPPT-40
Morningstar Corporation
Discontinued
SKU: ALG-020-01285
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 3.10 LBS

 Product Description

Morningstar 25A MPPT Charge Controller - PS-MPPT-40

Morningstar, ProStar MPPT Charge Controller, 40A, 12/24V, 30A Load Controller, 120V max input, No Meter, PS-MPPT-40

The Prostar MPPT solar charge controller with TrakStar Technology is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 1100 watts.

This controller allows multiple modules in series for 12V and 24V battery systems. Detailed battery programming options allow for advanced battery support for the latest Lithium, Nickel Cadmium, and Lead Acid battery types.

Features

  • High Efficiency & Reliability - Conformally coated circuit board and corrosion resistant terminals. High Efficiency – at low, medium, and high power levels.Maximizes Energy Harvest – using TrakStar MPPT Technology to determine and adjust to the true maximum power point as solar insolation changes throughout the day.
  • Customizing & Monitoring - Automatic PV Based Lighting Control – field adjustable, multi-event load control enables powerful options for PV lighting systems. Data Logging – up to 256 days of detailed power and load data. Self Diagnostics – continuous monitoring and reporting of any errors through its status LED’s, optional display or communication port.
  • Safe & Reliable - Low Noise Design – meets US Federal Communications Commission Class B specifications. MODBUS Communications – Solar Industry Standard MODBUS communications protocol allows for easy programming, control, remote data access and charge synchronization. Self Diagnostics – continuous monitoring and reporting of any errors through its status LED’s, optional display or communication port.



General Information
Manufacturer: Morningstar
Product Line:
ProStar
Model ID:
PS-MPPT-40
Certifications and Safety Ratings: ul.jpg csa.jpg ce.gifiec.jpg fcc.jpg



Mechanical Data

Technology: Maximum Power Point Tracker (MPPT)
Dimensions:
7.90 x 6.70 x 2.80 inches
Weight: 3.10 lbs
Casing: (White)
Display: LED
LED Indications: 1 Status, 3 Battery S.O.C
Transient Surge Protection:
Solar, Battery, & Load
Humidity: 100% Non-Condensing
Tropicalization: Conformal Coating, Marine-Rated Terminals



Electrical Data

Maximum Battery Current: 40 Amps
Load Current Rating: 30 Amps
Max. PV Open Circuit Voltage (Voc): 120 Volts
Nominal Max. Operating Power: 12 Volt - 550W @45C, 24 Volt - 1100W @60C
Peak Efficiency: 98%
Battery Voltage Range: 10-35 Volts
Voltage Accuracy:
<=0.1% +/- 50mV
Self-Consumption: Normal - 0.6W, Maximum - 1W
Max. Operating Temperature Range: -40°C to +60°C



Datasheets

Document Type
logo-adobe-pdf-2.jpgMorningstar ProStar PS-MPPT-40 Specs Specifications
logo-adobe-pdf-2.jpgMorningstar ProStar PS-MPPT-40 Manual Manual
Warranty 5 Year Standard Warranty
logo-adobe-pdf-2.jpgMorningstar ProStar PS-MPPT-40 Warranty Warranty
