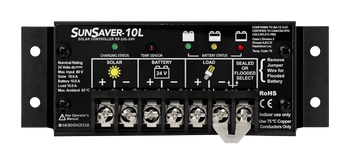

Morningstar SunSaver SS-10L-24V PWM Charge Controller

Morningstar, SunSaver, PWM Charge Controller, 10A, 24VDC, #10 AWG, LVD, LED Indicators, SS-10L-24V

Morningstar’s SunSaver SS-10L-24V is the world’s leading small solar controller for both professional and consumer applications including standard features and capabilities not found in any other small PV controller. SunSaver's technology provides: exceptional reliability, PWM battery charging and consistant high quality. Morninstar's SunSaver solar charge controller series is approved for use in hazardous locations, is tested and certified, and manufactured with Morningstar's exceptional quality.

The SunSaver's advanced design delivers outstanding performance and value. The SunSaver's low cost is made possible by Morningstar's unique approach to design and manufacturing their charge controllers: automatic production, ISO 9002 quality programs, latest power electronic technologies, latest control and logic technologies & high volume manufacturing.

*All of the SunSaver L series solar charge controllers come equipt with Low Voltage Disconnect (LVD)

Features

• Multiple Versions Available - Eight versions available (12 and 24 volts, 6, 10 and 20 amps). Green charging / red LVD indicators. Sealed / Flooded battery select. Temperature compensation.


• Powerful PWM Technology - Series design (not shunt). True 0 to 100% PWM duty cycle. Setpoint accuracy to 35 mV. No need to derate. Parallel for 40 amps or more.


• Safety & Certifications - 100% solid state. Rated for 25% overloads. Fully encapsulated in epoxy potting. Marine rated terminals / anodized case. Approved for use in hazardous locations - Class 1, Division 2, Groups A, B, C, D. ISO 9002 quality programs.
