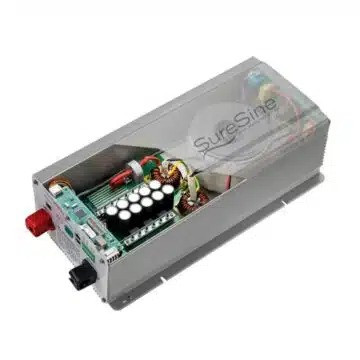

Morningstar SureSine 1000W 24V to 120VAC 60HZ Pure Sine Wave Inverter with Hard-Wired AC Output

Since 1993 the name Morningstar has been synonymous with industry-leading charge controllers, used in mission-critical applications around the world. With that heritage and reputation, “Morningstar of Inverters” has a very high bar to meet.

The new SureSine line was conceived for exactly that reason: meeting customer requests for a Morningstar inverter that’s equal to the quality and performance of our charge controllers. These new models are more than up to that task.

• Communication ports include Ethernet, USB, MS-CAN
• Inverter can be configured either manually via a DIP switch or digitally programmed with custom setpoints

Features

• Inverter Functions: DC/AC conversion with pure sinewave output
• Superior industrial-grade product design and manufacturing
• Engineered for system-level integration and communication with Morningstar charge controllers
• Communication ports: RS485 USB, Ethernet, MS-CAN, Bluetooth while using industry-standard MODBUS protocol
• Wireless Android and iOS utility apps included for set-up and monitoring with remote devices
• AC hardwire terminal option available on selected models (all power ranges and frequencies)
• Remote On/Off improves safety and enables control in inaccessible locations
• Auxiliary Power Output (700-2500 W models) provides power for an EIA-485 bus or other small DC loads
• Overbuilt, industrial-grade low-frequency transformer for improved sinewave stability
• Fanless convection cooling with extruded aluminum heat sinking, for maximum efficiency and reliability
• Status LEDs for both System and AC Sinewave output, to ensure reliable operation and notify of any system alerts
• Industry leading safety, low-noise and high performance NRTL certifications for reliability and system conformance
• Configuration can be achieved via manual DIP switch configuration or digitally programmable custom setpoints
