Morningstar TriStar TS-MPPT-60 MPPT Charge Controller

Hover over image to zoom

  • TS-MPPT-60
  • TriStar TS-MPPT-60
Morningstar Corporation
Discontinued
SKU: SLR-520-0097
Condition: New
Weight: 9.20 LBS

 Product Description

Morningstar TriStar 60A MPPT Charge Controller - TS-MPPT-60

Morningstar, TriStar, MPPT Charge Controller, 60A, 150VDC, 12/48VDC, #2 AWG, LED Indicators, with RTS, TS-MPPT-60

Morningstar’s TriStar TS-MPPT-60 solar charge controller with TrakStar Technology is an advanced Maximum Power Point Tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 3kW. The controller provides the industry’s highest peak efficiency of 99% and significantly less power loss compared to other MPPT controllers.

The TriStar MPPT features a smart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power point with extremely fast sweeping of the entire I-V curve. This product is the first PV controller to include on-board Ethernet for a fully web-enabled interface and includes up to 200 days of data logging.

Features

  • Maximizes Energy Harvest - Better peak power point tracking than other MPPT controllers. Very fast sweeping of the entire I-V curve. Recognition of multiple power points during shading or mixed PV arrays. Excellent performance at sunrise and low solar insolation levels.
  • Extremely High Reliability - Robust thermal design and no cooling fans. Parallel circuit design provides less stress and longer life for electronic components. No mechanical relays. Extensive electronic protections including PV short circuit protection. Epoxy encapsulated inductors and conformally coated printed circuit boards.
  • Highly Efficient - Peak efficiency of 99%. Proprietary tracking algorithm minimizes power losses. Low self-consumption. Continuous operation at full power to 45°C without need to de-rate. Selected electronic devices with higher ratings to minimize losses from heating.
  • Networking & Communications - Enables system monitoring, data logging and adjustability. Uses open standard MODBUS protocol and Morningstar’s MS View software. Meterbus: communications between compatible Morningstar products. Serial RS-232: connection to a personal computer. EIA-485: communications between multiple devices on a bus. Ethernet: fully web-enabled interface to a local network or internet; view from a web browser or send email/text messages.
  • Metering and Data Logging - Optional TriStar meter and remote meter provides detailed operating data, alarms and faults. Three LED’s display system status. Up to 200 days of data logging via meters or communications ports.



General Information
Manufacturer: Morningstar
Product Line:
TriStar MPPT
Model ID:
TS-MPPT-60
Certifications and Safety Ratings: ce.gif ul.jpg etl.jpg fcc.jpg rohs.jpg



Mechanical Data

Technology: Maximum Power Point Tracking (MPPT)
Dimensions:

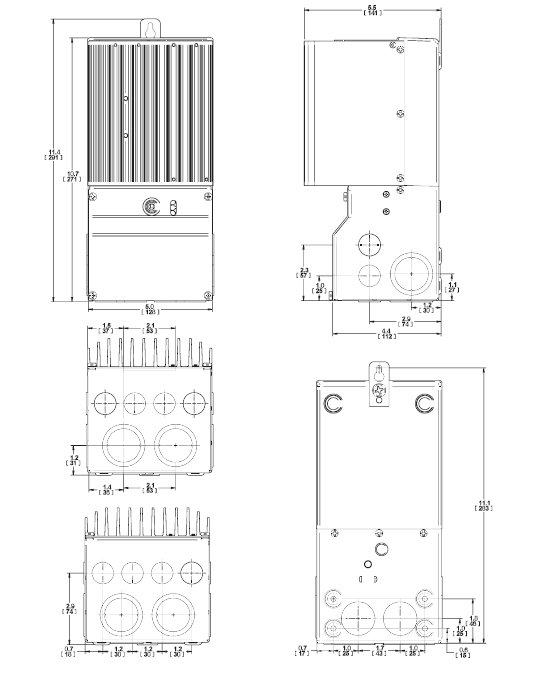

11.40 x 5.10 x 5.60 inches (TS-MPPT-60 Dimensions)
Weight: 9.20 lbs
Casing: (Gray)
Display: LED Indicator Lights
Wire Size: #2 AWG (35 mm²)
Conduit Knockouts: M20; ½, 1, 1 ¼ Inches
Enclosure: Type 1 (Indoor & Vented), IP20
Communication Ports: MeterBus, RS-232, EIA-485 & Ethernet



Electrical Data

Nominal System Voltage: 12, 24, 36 or 48 Volts DC
Maximum PV Open Circuit Voltage: 150 Volts DC
Battery Operating Voltage Range: 8 - 72 Volts DC
Maximum Battery Current:
60 Amps
Nominal Maximum Operating Power:
12 Volts at 800 Watts; 24 Volts at 1600 Watts; 48 Volts at 3200 Watts
Maximum Self-Consumption: 2.70 Watts
Peak Efficiency: 99%
Transient Surge Protection: 4500 Watts/Port
Battery Charging *Note: Remote Temperature Sensor is Included
Charging Algorithm: 4-Stage
Charging Stages: Bulk, Absorption, Float & Equalize
Temperature Compensation: Coefficient: -5mV/°C/Cell (25°ref); Range: -30°C to +80°C; Set Points: Absorption, Float, Equalize & HVD
Environmental -
Ambient Temperature: -40°C to +45°C
Storage Temperature: -55°C to +100°C
Humidity: 100% Non-Condensing
Tropicalization: Epoxy Encapsulation, Conformal Coating & Marine Rated Terminals
Electronic Protections -
Solar: Overload, Short Circuit, High Voltage
Battery: High Voltage
Standard: High Temperature, Reverse Current at Night,  Lightning & Transient Surges



Datasheets

Document Type
logo-adobe-pdf-2.jpgMorningstar TriStar TS-MPPT-60 Specifications Specifications
logo-adobe-pdf-2.jpgMorningstar TriStar TS-MPPT-60 Manual Users Manual
logo-adobe-pdf-2.jpgMorningstar TrackStar Technology
Technology Overview
Warranty 5 Year Material & Workmanship Warranty
logo-adobe-pdf-2.jpgMorningstar TriStar TS-MPPT-60 Warranty Warranty
