REC Group 350w Poly Solar Panel - TwinPeak2-72 - REC350TP2S-72 |
REC Group, 72-Cell Poly, 350w, PV Module, Clear Frame, MC4 Type, Made in Singapore, REC350TP2S-72 The 72-cell panels based on the award-winning REC TwinPeak technologies are bigger in size, deliver even higher power output per m2, and are ideally suited for commercial and industrial applications worldwide. REC TwinPeak 2S 72 Series solar panels feature an innovative design with high efficiency and an industry-leading lightweight, yet robust construction, enabling customers to get the most out of the installation area. Combined with the product quality and reliability of a strong and established European brand, REC TwinPeak 2S 72 panels are ideal for commercial rooftops worldwide. Installers, EPCs, investors, and end customers will experience its advantages almost immediately, including lower balance of system costs and higher yield thanks to its increased power output and improved performance in shaded conditions, enabled by the innovative ‘twin’ design. |
Features
|
General Information | |
Manufacturer: | REC Group |
Product Line: |
TwinPeak2S-72 Series |
Model ID: |
REC350TP2S-72 |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Polycrystalline (Poly) |
Dimensions: |

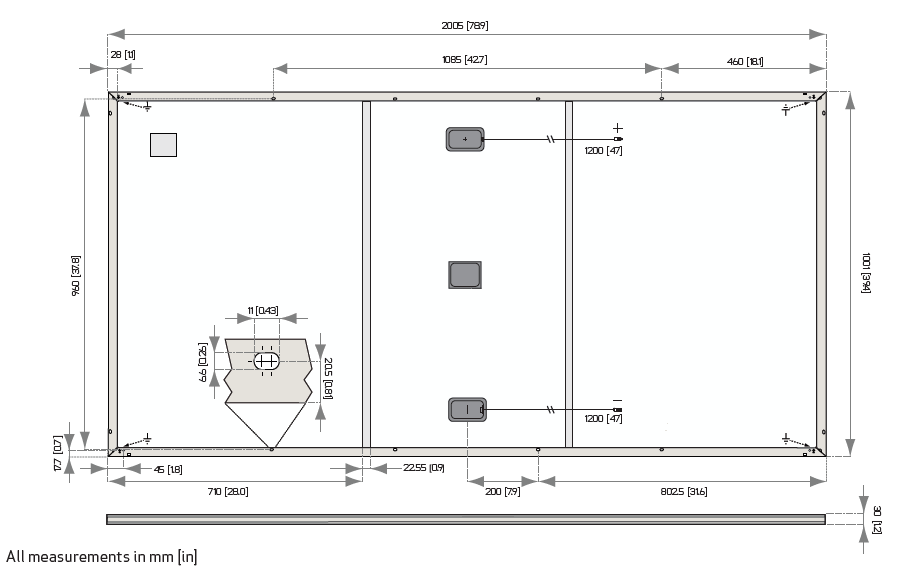

78.90 x 39.40 x 1.20 inches (REC350PT2S-72 Dimensions) |
Weight: | 48.50 lbs |
Area: | 21.60 ft² |
Cell Type: | 144 Multicrystalline in 6 Strings of 24 Cells |
Glass: | 0.13" (3.2mm) Solar Glass with Anti-Reflection Surface Treatment |
Back Sheet: | Highly Resistant Polyester |
Frame: | Anodized Aluminum (Silver) |
Support Bars: | Anodized Aluminum (Bonded to Backsheet) |
Junction Box: |
IP67 Rated with 3 Bypass Diodes; 12 AWG (4 mm²) PV Wire, 47"+47" (1.2m + 1.2m) |
Connectors: | Toglin TL-Cable01S-F, 12 AWG (4 mm²) |
Operational Temperature: | -40°C to +85°C |
Maximum System Voltage: | 1000V / 1500 V |
Design Load (+): | 75.2 lbs/ft² (3600 Pa) |
Design Load (-): | 33.4 lbs/ft² (1600 Pa) |
Maximum Series Fuse Rating: | 20 Amps |
Max Reverse Current: | 20 Amps |
Electrical Data |
|
Nominal Power (Pmpp): | 350 Watts |
Watt Class Sorting (W): | 0/+5 |
Nominal Power Voltage (Vmpp): | 38.90 Volts |
Nominal Power Current (Impp): | 9.00 Amps |
Open Circuit Voltage (Voc): | 46.70 Volts |
Short Circuit Current (Isc): | 9.40 Amps |
Panel Efficiency: | 17.40% |
Datasheets |
|
Document | Type |
REC Group REC350TP2S-72 Specifications | Specifications |
REC Group REC350TP2S-72 Installation Guide | Installation Guide |
Warranty | 20 Year Product Warranty |
Performance Guarantee | 25 Year Linear Power Output Warranty |
REC Group REC350TP2S-72 Warranty | Warranty |
