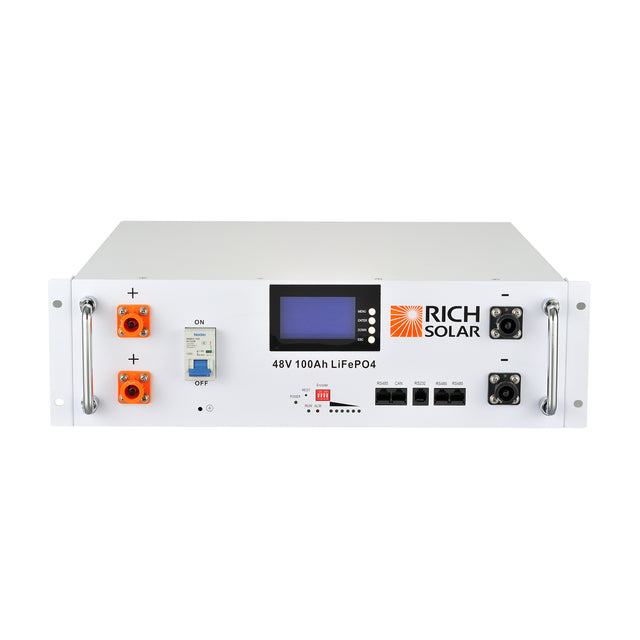

Rich Solar ALPHA 5 | 48V 100Ah LiFePO4 Battery | Premium 48V Server Rack Lithium Battery for Residential, Commercial, Off-Grid | 7,000 Lifetime Cycles | Pre-Order Only

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
Rich Solar
MSRP: $1,599.99
$1,279.99 (You save $320.00)
SKU: RS-B4811
Condition: New
Weight: 92.60 LBS
Shipping: Free Shipping

 Product Description

Rich Solar ALPHA 5 | 48V 100Ah LiFePO4 Battery | Premium 48V Server Rack Lithium Battery for Residential, Commercial, Off-Grid | 7,000 Lifetime Cycles | Pre-Order Only - RS-B4811



PRE-ORDER ONLY
Available for pre-order only. Please allow up to 60 days for delivery, as we produce these batteries based on demand.

7,000 Cycles. LiFePO4 Lithium Battery. 20 Years Lifespan.
RICH SOLAR 48V 100Ah lithium iron phosphate battery has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies. The LiFePO4 technology has better thermal and chemical stability, which improves battery safety and packed with power in a small and lightweight footprint.

FEATURES

  • Extremely high number of charge/discharge cycles
  • 20 Year lifespan with proper maintenance
  • Built-in smart battery management system
  • Wide operating temperature range
  • Unsurpassed high temperature performance
  • Green energy without metal contaminant
  • Low maintenance
  • High amp capacity
  • Stable output voltage
  • Little self-discharge
  • Lifetime customer support
  • Over charging or discharging protection.
  • Over current & short circuit protection.
  • High & low temperature disconnects
  • Charge Voltage: 52.5V
  • Max Charge Current: 100 A
  • Max Discharge Current: 100 A
  • Battery Dimensions: 19"L x 18 3/4"W x 5 1/4"H
  • Weight: 92.6 lb
  • Connect in Parallel for Larger Capacity



General Information
Manufacturer: Rich Solar
Product Line: Battery
Model ID:
RS-B4811
Certifications and Safety Ratings: tuv.jpg  etl.jpg  pv-cycle.jpg  mcs.jpg  iec.jpg  ul.jpg



Specifications


Electrical Specifications

  • Nominal Voltage: 48V
  • Nominal Capacity (at .5C, 77°F): 100Ah
  • Minimum Capacity (at .5C, 77°F): 99.5Ah
  • Expected Cycle Life: >7000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD

Operating Specifications

  • Charge Method: Smart charger, constant current, constant voltage
  • Operating Voltage: 48 V
  • Capacity: 100 Ah
  • Energy: 4800 Watt Hours
  • Charge Voltage Range (Max 52.5V): 52.0 -52.5V
  • Continuous Charge Current: 100A
  • Continuous Discharge Current: 100A
  • Over Voltage Shutdown:  52.5 +/-0.2V
  • Discharge Cut-off Voltage: 42V =/- 0.5V
  • Self Discharge (stored at 50% SOC): <3%/month
  • Waterproof: IP65

Temperature Performance

  • Charge Temperature: 32° F to 113° F
  • Discharge Temperature: -4° F to 122° F
  • Storage Temperature: -4° F to 122° F
  • BMS High Temperature Cut-off: 149°F
  • BMS Low Temperature Cut-off: 32°F

Physical Specifications

  • Battery Dimensions(L*W*H): 19x 17.7x 5.2 in
  • Weight: 42kg/92.6 lb

Battery Server Rack Specifications

  • Battery Server Rack Dimensions(L*W*H): 27.6 x 27.6 x 44 in
  • Weight: 196 lb
  • Thickness: Frame 1.5mm, top/bottom plate 1.2mm, column 2.0mm, mesh door plate 1.2mm, side plate (screw fixed) 1.0mm, L-shaped bracket 2.0mm;
  • Material: High-quality cold-rolled steel plate
  • Protection level: IP20

BMS Operation

Over Charge Protection

  • Over charge detection voltage: 3.9 +/- 0.05V
  • Over charge detection delay time: 0.96 – 1.4s
  • Over charge release voltage: 3.80 +/-0.05V
  • Maximum charge voltage: 3.65 +/-0.05V

Over Discharge Protection

  • Over discharge detection voltage: 2.0V +/- 0.05V
  • Over discharge detection delay time: 115-173ms
  • Over discharge release voltage: 2.3V +/- 0.10V
  • Over Current Protection Over current detection delay time: 9 +/- 2ms
  • Over current release condition: Cut load
  • Polarity Reverse Protection: Yes
  • Short Circuit Protection: Yes
  • Communication Ports: RS485/CAN
  • Warranty: 10 Year Manufacturer Defect

BMS Safety Protection

  • Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
  • Convenient removable carry handle
  • Lightweight
  • Short circuit protected
  • Physical damage to battery case will not cause fire
  • Excessive thermal exposure will not cause a fire
  • Able to withstand over-charge/over-discharge without damage to the battery
  • Sophisticated Battery Management System (BMS)

Included:

  • 1 foot RS485 communication cable
  • Set of parallel cables per battery
  • 4.8kWh (48V 100Ah) lithium iron phosphate battery

Battery Server Rack

  • Battery Server Rack Dimensions39"L x 32"W x 24"H
  • Weight: 159 lb
  • Material: High-quality cold-rolled steel plate
  • Protection level: IP20
  • Packaging: Carton + wooden pallet



Datasheets

Document Type

logo-adobe-pdf-2.jpgSpec

logo-adobe-pdf-2.jpgManual

Spec

Manual
