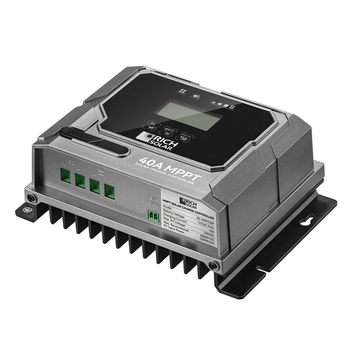

Rich Solar BRAVO 40 | 40 Amp MPPT Solar Charge Controller | Premium 40A 12V/24V MPPT Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Awarded #1 Solar Controller 2025

Image 1

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
  • Image 8
Rich Solar
MSRP: $199.99
$159.99 (You save $40.00)
SKU: RS-MPPT40P
Condition: New
Weight: 3.00 LBS
Shipping: Free Shipping

 Product Description

Rich Solar BRAVO 40 | 40 Amp MPPT Solar Charge Controller | Premium 40A 12V/24V MPPT Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Awarded #1 Solar Controller 2025 - RS-MPPT40P



FEATURES

  • True MPPT, the Latest Algorithm
  • Tracking Efficiency Above 99.5%
  • Charge Conversion Efficiency as Higher as 98%
  • 12V / 24V DC System Self-Adaptation
  • Reverse Discharge Protection
  • Targeted for Accurate CUSTOM Setting
  • Overvoltage Protection
  • Common Negative Connection
  • Charging Data Storage
  • Conformal Coating For Inside Board
  • Designed According to UL1741, EN/IEC 62109 1
  • In-house Design And Manufacture
  • Extensive Internal Electronics In-Circuit Protections And Safety Protections
  • Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
  • Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections



General Information
Manufacturer: Rich Solar
Product Line: Controller
Model ID:
 RS-MPPT40P
Certifications and Safety Ratings: tuv.jpg  etl.jpg  pv-cycle.jpg  mcs.jpg  iec.jpg  ul.jpg



Specifications


UNIQUE PERFORMANCE

  • Splash Proof IP43
  • 8+1 Battery Type Option
  • Rubber Mask For Connectors Protection
  • Unique Charge Management Technology For Safe And  Optimized Charge
  • Unique Multiple Peaks Detected Technology For Maximum  PowerPoint Tracking
  • Housing Enclosure In Patent Application
  • Large and Informative LCD Display To Show Solar, Battery and Setting Parameters
  • Unique Fully Discharged Battery Recovery Or Re-Start For  Lead Acid or Lithium Battery
  • Unique and Concise LED Bar / Transparent Windows  Indications In Patent Application
ATTRIBUTE VALUE
System Nominal Voltage: 12/24V Auto
Max. PV Open Circuit Voltage:  100VOC
Charging Technology:  MPPT
Max PV Charging Current:  40A
Max. Recommended PV Input Power 600 Watt (12V) / 1200 Watt (24V)
Battery Type Preset:  Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
Housing Case Color: Black / Grey
IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
Net Weight: 1.17kg / 2.58lb
Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in
