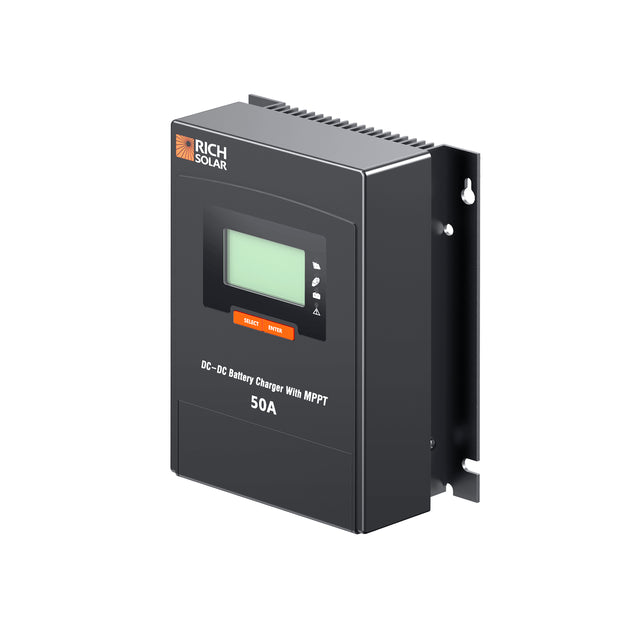

Rich Solar BRAVO 50 DC | 50 Amp DC-DC Solar Charge Controller with MPPT | Premium 50A 12V/24V DC-DC Solar Controller with MPPT for RVs, Trailers, Campers, Vans, Boats, Off-Grid

Image 1

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
Rich Solar
MSRP: $249.99
$199.99 (You save $50.00)
SKU: RS-MPPT50DC
Condition: New
Weight: 4.70 LBS
Shipping: Free Shipping

 Product Description

Rich Solar BRAVO 50 DC | 50 Amp DC-DC Solar Charge Controller with MPPT | Premium 50A 12V/24V DC-DC Solar Controller with MPPT for RVs, Trailers, Campers, Vans, Boats, Off-Grid - RS-MPPT50DC

The BRAVO 50 DC is a high-quality charging device designed specifically for charging lithium batteries from a vehicle's alternator. This charger utilizes Maximum Power Point Tracking (MPPT) technology to optimize the charging efficiency and ensure maximum power transfer from the alternator to the battery, giving you the comfort and confidence to go fully off-grid!

Features

  • Can connect to PV and alternator
  • Charges both leisure and starter battery
  • MPPT with up to 99.9% efficiency
  • Supports TTL communication



General Information
Manufacturer: Rich Solar
Product Line:
 Charger
Model ID:
 RS-MPPT50DC
Certifications and Safety Ratings: ul.jpg ieee.jpg fcc.jpg csa.jpg



Specifications




PV INPUT

  • Max. Voltage of Open Circuit: 55Vdc
  • MPPT Voltage Range: 17-36Vdc
  • Max PV Input Current: 45A
  • Max PV Input Power: 800W

BATTERY TYPE - Li-ion / Lead Acid / User Defined

  • Rated Battery Voltage: 12Vdc
  • Battery Voltage Range: 9-17Vdc
  • Max MPPT Charging Current: 50A
  • Max Alternator Charging Current: 60A
  • MPPT Charging Mode: Buck

BATTERY TYPE - Lead Acid

  • Rated Battery Voltage: 12Vdc
  • Max MPPT Charging Voltage: 13.8V
  • Max MPPT Charging Current: ≤25A
  • Max Alternator Input Voltage (Conventional): 13.2-16Vdc
  • Max Alternator Input Voltage (Euro 6 Standard): 12-16Vdc
  • Alternator Charging Mode: Buck, Boost, Buck-Boost

EFFECIENCY

  • MPPT Tracking Efficiency: >99%
  • Max Charging Conversion Efficiency: 98%

COMMUNICATION

  • Embedded Interfaces: TTL, Remove Switch

GENERAL

  • Weight: 4.7 lbs
  • Dimensions: 8.7 x 6.9 x 3.2 inches
  • Protection Degree: IP32
  • Operating Temperature Range: -35°C~65°C（-31℉～149℉)

CERTIFICATION

  • Safely: IEC62109
  • EMS: IEC61000, FCC sDoC
  • Rohs: YES



Datasheets

Document Type

logo-adobe-pdf-2.jpg50 AMP DC TO DC LITHIUM BATTERY ALTERNATOR CHARGER WITH MPPT

logo-adobe-pdf-2.jpgSPECIFICATION

 Manual

Spec
