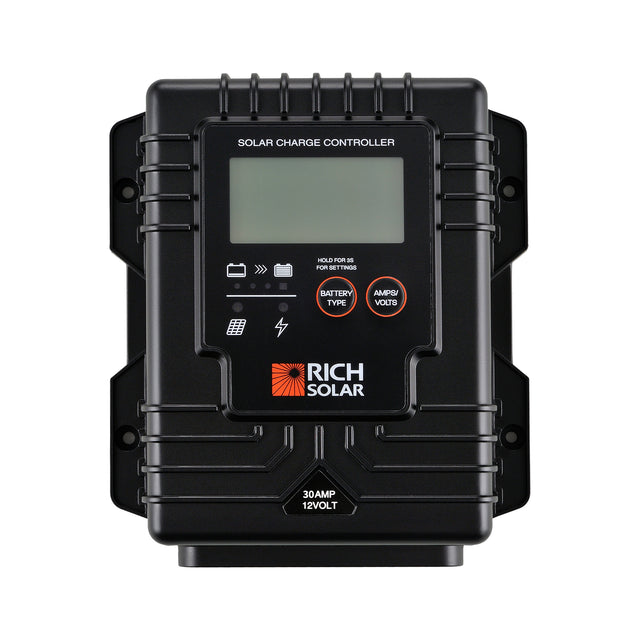

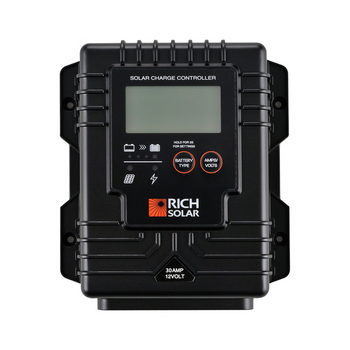

Rich Solar BRAVO Waterproof 30 | 30 Amp Waterproof PWM Solar Charge Controller | Waterproof 30A 12V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | #1 Waterproof Solar Controller

Image 1

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
Rich Solar
MSRP: $79.99
$63.99 (You save $16.00)
SKU: RS-PWM30WP
Condition: New
Weight: 1.00 LBS
Shipping: Free Shipping

 Product Description

Rich Solar BRAVO Waterproof 30 | 30 Amp Waterproof PWM Solar Charge Controller | Waterproof 30A 12V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | #1 Waterproof Solar Controller - RS-PWM30WP



FEATURES

  • PWM technology, switching control by MOSFET
  • Common Positive Grounding connection
  • High efficiency and low power consumption
  • Battery type setting via DIP switch
  • Smart charging control
  • Charging time management
  • LED indication for the battery condition and charging status
  • Thermal protection
  • No sparks
  • Waterproof
  • Solid-duty cables
  • Corrosion-resistant terminals and connectors.
  • Conformal coating supplied to the inside board against moisture
  • Includes a port for an external battery temperature sensor (BTS - optional)
  • Suitable for most of the rechargeable Lead acid battery, including Flooded (WET), AGM, GEL, Lithium (LiFePO4) battery
  • Designed according to CE standard, EMC, FCC compliance
  • Overvoltage protection, short circuit protection, reverse polarity protection



General Information
Manufacturer: Rich Solar
Product Line: Controller
Model ID:
 RS-PWM30WP
Certifications and Safety Ratings: tuv.jpg  etl.jpg  pv-cycle.jpg  mcs.jpg  iec.jpg  ul.jpg



Specifications




MOUNTING THE DEVICE

The quickest and easiest way to mount the unit is to use the three plastic spacers and self-tapping screws supplied and mount
the unit to a flat surface.

ELECTRICAL PARAMETERS
Rated solar panel amps: 30AMP Max.
Normal input Solar cell array voltage: 15-22VDC
Max. solar cell array voltage (output has no load): 25VDC Max.
The controller lowest operating voltage (at solar or battery side): 8VDC Min.
Standby current consumption at night 5mA Max.
Maximum voltage drop-Solar panel to battery: 0.25VDC Max.

CHARGING CHARACTERISTICS
Minimum battery start charging voltage: 3VDC Min.
Soft start charging voltage: 3-10±0.2VDC
Soft start charging current (50% PWM duty): Up to 10AMP
Bulk charge voltage: 10-14±0.2VDC
Equalization charging voltage at 25 ℃ 15.5±0.2VDC
Equalization charging timer timed out: 2 Hours
Battery temperature compensation coefficient -24mV/°C
Temperature compensation range: -20~+50°C

PROTECTION
Over temperature protection during charging: 65°C

ELECTRICAL PARTS
Input output terminal: M5 terminals

PHYSICAL PARAMETERS
Controller material: Plastic, Standard ABS
Power terminal maximum stranded wire size: #10AWG stranded-5mm²
Mounting: Vertical wall mounting
IP grade: IP65
Net weight: Approx. 0.3kg/0.66lb

ENVIRONMENTAL CHARACTERISTICS
Operating temperature: -25~50°C(-13～122℉)
Storage temperature: -40~85°C(-40～185℉)
Operating Humidity range: 100% no condensation



Datasheets

Document Type

logo-adobe-pdf-2.jpgSheet

logo-adobe-pdf-2.jpgManual

Sheet

Manual
