Rich Solar Complete Off-Grid Solar Kit RS-H6548 | 8000W PV Input 48V 120VAC Output + 6560(16x410) Watt Solar PV [KIT-SR0001]

Image 1

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
  • Image 8
  • Image 9
  • Image 10
  • Image 11
  • Image 12
  • Image 13
  • Image 14
  • Image 15
  • Image 16
  • Image 17
  • Image 18
  • Image 19
  • Image 20
  • Image 21
  • Image 22
  • Image 23
  • Image 24
Rich Solar
MSRP: $10,999.99
$8,799.99 (You save $2,200.00)
SKU: SRx3-H6548x1-M410x16
Condition: New
Weight: 200.00 LBS
Shipping: Free Shipping

 Product Description

RICH SOLAR Complete Off-Grid Solar Kit RS-H6548 | 8000W PV Input 48V 120VAC Output + 6560(16x410) Watt Solar PV [KIT-SR0001] - SRx3-H6548x1-M410x16

This travel trailer solar system includes flexible solar panels for RV and tiny homes, so you can jumpstart your off-grid solar trailer adventure today.

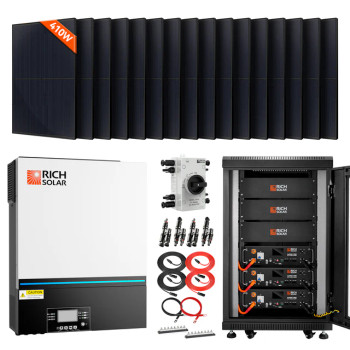

This kit includes:

Solar Panel Options：

 16 x MEGA 410 Watt Monocrystalline Solar Panel (RS-M410)
 1 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)
 3 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P1)
 1 x Free Battery Rack (RS-RK)
 1 x Solar PV DC Quick Disconnect Switch (RS-i4)
 2 x 4 Foot 2/0 Gauge AWG Wire Set 3/8" (RS-2/0A4F3)
 4 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102)
 2 x Y Branch Parallel Connectors 2 to 1 (RS-T2)
 2 x Busbar 600 AMP



General Information
Manufacturer: Rich Solar
Product Line: Solar Kit
Model ID:
 SRx3-H6548x1-M410x16
Certifications and Safety Ratings: tuv.jpg  etl.jpg  pv-cycle.jpg  mcs.jpg  iec.jpg  ul.jpg
Specifications

6500W 48V Off-Grid Hybrid Solar Inverter (RS-H6548)
Rated Inverter Power: 6500VA/6500W
Parallel Capability: Yes, 6 Units
Input Voltage: 120 VAC
Frequency Range: 50 Hz/60 Hz (Auto Sensing)
Efficiency (Peak): 90% ~ 93%
Waveform: Pure Sine Wave
Battery Voltage: 48 VDC
Solar Charger Type: MPPT
Maximum PV Array Power: 8000W (4000W x 2)
MPPT Operating Voltage Range: 90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage: 250 VDC
Maximum Charge Current: 120A
Dimension (DxWxH): 5.8 x 17.0 x 21.8 in
Net Weight: 40.6 lb
Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact
Compliance Safety: UL
Warranty: 5 Years

ALPHA 5 | 51.2V 100Ah Server Rack Lithium Iron Phosphate Battery (RS-B5121P1)
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Expected Cycle Life: >7000 Cycles
Energy: 5.12kWh
Continuous Charge Current: 100A
Continuous Discharge Current: 100A
Waterproof: IP65
Dimensions: 17.7″L x 17.8″W x 5.2″H
Net Weight: 99.2 lb
Warranty: 10 Years Manufacturer Defect

MEGA 410 Watt Monocrystalline Solar Panel (RS-M410)
Maximum Power(Pmax): 410W
Maximum Power Voltage(Vmp): 31.3V
Maximum Power Current(Imp): 13.1A
Maximum System Voltage(Vmax): 1500VDC
Module Efficiency: 20.97%
Net Weight: 45.2 lb
Dimensions: 67.9 x 44.6 x 1.2 in
Warranty: 25 Years

BATTERY SERVER RACK
Dimensions (LxWxH): 27.6 x 27.6 x 44 in
Net Weight: 196 lb

SOLAR PV DC Quick Disconnect Switch (RS-i4)
1500 Volts @ 32 Amps
Waterproof: IP66NW
Dimensions (HxWxD): 7.1 x 6.8 x 4.3 in
Net Weight: 1.7lb
Warranty: 10 Years



Datasheets

Document Type

logo-adobe-pdf-2.jpgInverter Data Sheet

logo-adobe-pdf-2.jpgInverter Manual

logo-adobe-pdf-2.jpgBattery Data Sheet

logo-adobe-pdf-2.jpgBattery Manual

logo-adobe-pdf-2.jpgDisconnect Switch Data Sheet

logo-adobe-pdf-2.jpgDisconnect Switch Manual

Spec Sheet

Manual

Spec Sheet

Manual

Spec Sheet

Manual
