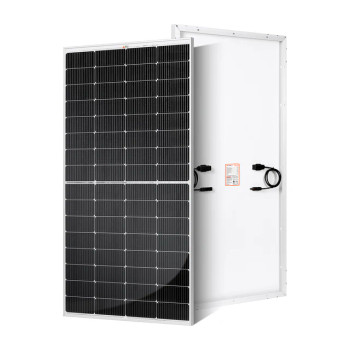

Rich Solar MEGA 220 | 220 Watt Solar Panel | Premium 12V Off-Grid Solar Panel for RVs, Cabins, Boats | 25-Year Output Warranty | UL Certified

Image 1

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
Rich Solar
$224.99
SKU: RS-M220
Condition: New
Weight: 23.70 LBS
Shipping: Free Shipping

 Product Description

Rich Solar MEGA 220 | 220 Watt Solar Panel | Premium 12V Off-Grid Solar Panel for RVs, Cabins, Boats | 25-Year Output Warranty | UL Certified - RS-M220

MEGA 220 | 220 Watt Solar Panel | Premium 12V Off-Grid Solar Panel for RVs, Cabins, Boats | 25-Year Output Warranty | UL Certified

FEATURES

  • 15-busbar solar cell configuration
  • Lightweight, anodized aluminum frame
  • High Transmission, AR (anti-reflective) Coated Tempered Glass
  • Plug-and-play junction box
  • Industry standard quick-connect cables work in series or in parallel
  • Excellent low light performance on cloudy days, mornings and evenings
  • Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection)
  • Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)



General Information
Manufacturer: Rich Solar
Product Line: Panel
Model ID:
 RS-M220
Certifications and Safety Ratings: tuv.jpg  etl.jpg  pv-cycle.jpg  mcs.jpg  iec.jpg  ul.jpg



Specifications




  • Model: RS-M220
  • Maximum Power(Pmax): 220W
  • Maximum Power Voltage(Vmp): 18.3V
  • Maximum Power Current(Imp): 12.0A
  • Open Circuit Voltage(Voc): 22.1V
  • Short Circuit Current(Isc): 12.5A
  • Maximum System Voltage(Vmax): 1500 VDC
  • Temperature Range: -40~ +185℉
  • Weight: 23.7lb (10.7kg)
  • Dimensions: 55.1x30.0x1.2in (1400x760x30mm)

Installation

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
  • Compatible with on-grid and off-grid inverters

Warranty

  • 25-year output warranty
  • 10-year workmanship warranty

Built-in Components

  • 220 watt solar panel
  • Panel leads (pair): 3 feet each
  • IP67-rated waterproof junction box
  • IP67-rated waterproof solar connectors
  • Bypass diodes built into the junction box



Datasheets

Document Type

logo-adobe-pdf-2.jpgSheet

logo-adobe-pdf-2.jpgCERTIFICATION

 Spec Sheet

Certification



Terms & Conditions

Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.

Rich Solar - Rich Solar MEGA 220 | 220 Watt Solar Panel | Premium 12V Off-Grid Solar Panel for RVs, Cabins, Boats | 25-Year Output Warranty | UL Certified
Price: 224.99
Condition: new



 Warranty Information

Rigid Solar Panels:
25-Year Power Output Warranty
10-Year Workmanship Warranty
Portable Solar Panels:
25-Year Power Output Warranty
5-Year Workmanship Warranty
2-Year Warranty for Controller on Kits
Flexible Panels: 1-Year Warranty
Batteries:
ALPHA LITE Series *5-Year Warranty
ALPHA Series: *5-Year Warranty
ALPHA PRO Series: *10-Year Warranty
LiFePO4 Battery Bank (Black): *5-Year Warranty
Inverters:
Grid-Tie Inverters: 10-Year Warranty
Pure Sine Wave Inverters: 2-Year Warranty
Hybrid Inverters: 3-Year Warranty
Controllers:
MPPT Controllers: 2-Year Warranty
PWM Controllers: 1-Year Warranty
