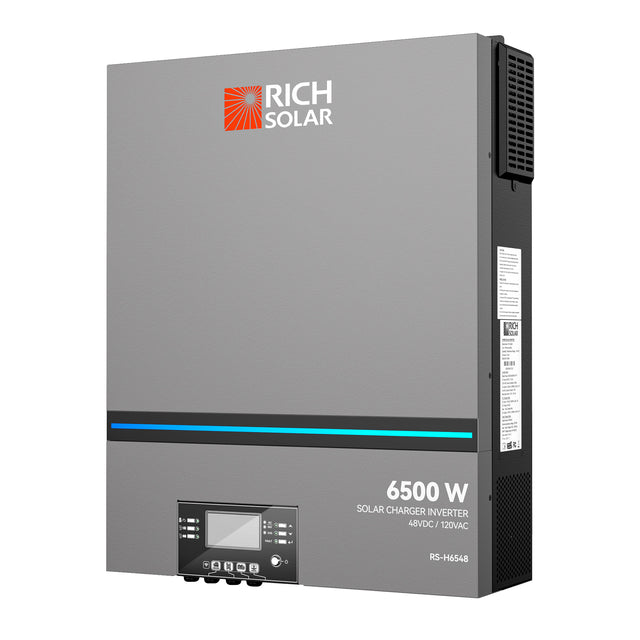

Rich Solar NOVA 6K | 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter 550V PV Input

Image 1

Hover over image to zoom

  • Image 1
Rich Solar
MSRP: $1,299.99
$1,039.99 (You save $260.00)
SKU: RS-H6548V5
Condition: New
Weight: 41.00 LBS
Shipping: Free Shipping

 Product Description

Rich Solar NOVA 6K | 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter 550V PV Input - RS-H6548V5



FEATURES

  • Pure sine wave inverter
  • Configurable color with the built-in RGB LED bar
  • Built-in Wi-Fi for mobile monitoring (APP is required)
  • Supports USB On-the-Go function
  • Built-in anti-dusk kit
  • Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
  • Configurable input voltage ranges for home appliances and personal computers via LCD control panel
  • Configurable AC/PV output usage timer and prioritization
  • Configurable AC/Solar charger priority via LCD control panel
  • Configurable battery charging current based on applications via LCD control panel
  • Compatible to utility mains or generator power
  • Auto restart while AC is recovering
  • Overload / Over temperature / short circuit protection
  • Smart battery charger design for optimized battery performance
  • Cold start function



General Information
Manufacturer: Rich Solar
Product Line: Inverter
Model ID:
 RS-H6548V5
Certifications and Safety Ratings: tuv.jpg  etl.jpg  pv-cycle.jpg  mcs.jpg  iec.jpg  ul.jpg



Specifications




Model: RS-H6548V5
Rated Output Power: 6500W
PARALLEL CAPABILITY: Yes, 6 units


INPUT

  • Input Voltage: 120 VAC
  • Efficiency:>95% (Rated R load, battery full charged)
  • Frequency Range: 50Hz / 60Hz (Auto detection)


OUTPUT

  • Rated Output Power: 6500W
  • Output Voltage Waveform: Pure Sine Wave
  • Output Voltage Regulation: 120VAC±5%
  • Peak Efficiency:91%
  • Surge Capacity:2* rated power for 5 seconds
  • Nominal DC Input Voltage: 48VDC
  • Cold Start Voltage: 46.0VDC


BATTERY

  • Battery Voltage: 48 VDC
  • Floating Charge Voltage: 54 VDC
  • Overcharge Protection: 66 VDC


OPERATING ENVIRONMENT

  • Operating Temperature Range: -10°C to 40°C
  • Storage temperature: -15°C~ 60°C
  • Humidity: 5% to 95% Relative Humidity (Non-condensing)


PHYSICAL

  • Dimension (mm): 147.4 x 432.5 x 575.6 (620.6) (with extension box)
  • Net Weight: 18.4kg/41lb



Datasheets

Document Type

logo-adobe-pdf-2.jpgRS-H6548V5 Sheet

logo-adobe-pdf-2.jpgRS-H6548V5 Manual

logo-adobe-pdf-2.jpgCERTIFICATION
