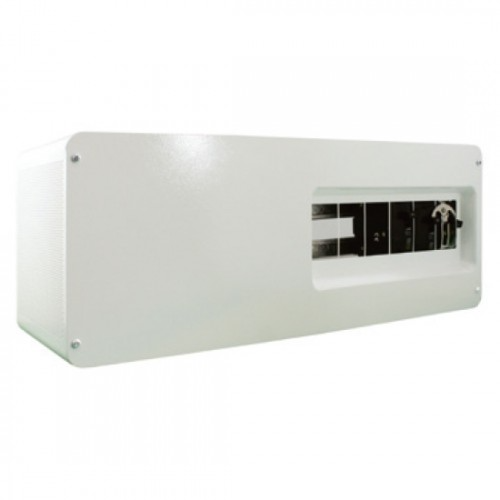

Schneider Electric CONEXT SW AC Breaker Panel (120/240V Version)

The SW Power Distribution Panels are pre-wired out of the box and labeled to support the integration of SW inverter/chargers with a Conext MPPT Solar Charge Controller, battery bank and load centers. Designed to save installers significant time, effort and costs on every installation, the Distribution Panels offer excellent value when compared to customized options.

The solution set includes a DC distribution panel complete with a pre-installed 250 A DC breaker and additional breaker slots for integrating multiple DC power sources. AC distribution panels are also available for 120/240 VAC and 230 VAC requirements, pre-installed with multiple AC breakers for integrating AC power sources and loads. Each AC panel also supports the integration of fuel-based generators providing a central load center for managing an installation’s AC power needs.

Features

Flexible
Additional DC and AC breaker slots available for expanded capacity
Key holes available on the side of DC panel for integrating MPPT60 Solar Charge Controller
Use AC distribution panels as optional load centers

Easy to service
Breaker configuration allows SW inverter/chargers to be AC bypassed for servicing
Removable front cover allows for visual inspection

Higher return on investment
Integrate SW inverter/chargers and MPPT Solar Charge Controllers with a single battery bank
Repeatable standard installation that saves time and money
