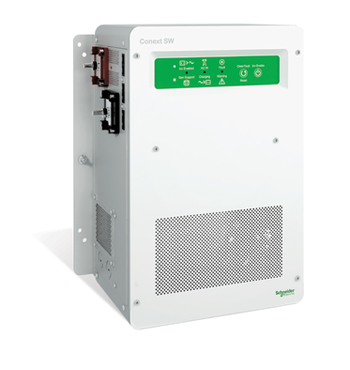

Schneider Electric 4KW Battery INVERTER - RNW8654048 |
Schneider Electric, Conext SW4048 battery inverter, 4000W, 120/240VAC, 50/60Hz, 30A Transfer, 48VDC, Sinewave, 45A Charger, 2 Yr Warr, with BTS, RNW8654048 Conext SW delivers new value and a new price point to the marketplace in 2013. Conext SW is a pure sine wave, inverter/charger system with switchable 50/60 Hz functionality available for both 120/240 VAC or 230 VAC models. North American units feature split-phase input and output without the need for an external transformer. Available DC and AC switchgear panels, display control panel, remote monitoring and automated generator control modules present even more value. Stacking Conext SW units will double the power and available solar charge controllers allow for the integration of solar capacity as required. |
Features
|
General Information | |
Manufacturer: | Schneider Electric |
Product Line: |
Conext |
Model ID: |
RNW865404861 |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Dimensions: |
16.50 x 13.40 x 7.60 inches |
Weight: | 62.00 lbs |
Compatible Battery Types: | FLA, Gel, AGM, Custom |
Ingress Protection Rating: | Indoor Only, IP20 |
Electrical Data |
|
Continuous Output Power at 25°C: | 3400 VA |
Peak Current: | 42 Amps |
Output Frequency: | 50 / 60 Hz Selectable |
Output Voltage: | 230 VAC |
Output Wave Form: | True Sine Wave |
Typical Efficiency: | 92% |
Idle Consumption Search Mode: |
<11 W |
Input DC Voltage Range: | 40 to 68 VDC |
AC Connections: | Single Phase |
Temperature Range: | -40 to +60°C |
Datasheets |
|
Document | Type |
Schneider Electric RNW8654048 Specifications | Specifications |
Schneider Electric RNW8654048 Installation Guide | Installation Manual |
Warranty | 2 Year Contractual Warranty |
Schneider Electric RNW8654048 Warranty | Warranty |
